S4SC 4 inch Solar-Powered Centrifugal Submersible Borehole Pump Stainless Steel Impeller Pump with MPPT Controller
The 4-inch Solar Powered DC Centrifugal Submersible Bore Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar bore pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.
Equipped with an MPPT controller and a brushless DC motor, this solar dc submersible water pump ensures maximum energy efficiency and stable operation. Its DC screw type design allows it to maintain consistent water flow even in deep wells or low-yield water sources, reducing maintenance needs.
This durable and versatile DC pump is ideal for agriculture irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the brushless dc solar water pump provides a sustainable and long-lasting water pumping solution.
| No. | Item | Rated Voltage | Optimum input voltage(DC) | Rated Power | Optimum input Power(W) | Max. Flow | Max. Head | Outlet | Cable | Controller | Solar panel Open circuit voltage (VOC) |
| A | S4SC5.2-45-48-500D | 48V | 30-110V | 500W | 200-900W | 5.2m³/h | 45m | 1.25 " | 2m | SSCO | ＜150V |
| B | S4SC5.2-67-96-750D | 96V | 60-220V | 750W | 400-1600W | 5.2m³/h | 67m | 1.25 " | 2m | SSCO | ＜250V |
| C | S4SC5.2-101-110-1100D | 110V | 60-220V | 1100W | 400-1600W | 5.2m³/h | 101m | 1.25 " | 2m | SSCO | ＜250V |
| D | S4SC5.2-146-110-1300D | 110V | 60-220V | 1300W | 600-1800W | 5.2m³/h | 146m | 1.25 " | 2m | SSCO | ＜250V |
| E | S4SC5.2-198-110-1500D | 110V | 60-220V | 1500W | 600-1800W | 5.2m³/h | 198m | 1.25 " | 2m | SSCO | ＜250V |
| F | S4SC5.2-101-150-1100D | 150V | 80-260V | 1100W | 400-1600W | 5.2m³/h | 101m | 1.25 " | 2m | SSCO | ＜450V |
| G | S4SC5.2-146-180-1300D | 200V | 120-300V | 1300W | 600-1800W | 5.2m³/h | 146m | 1.25 " | 2m | SSCO | ＜450V |
| H | S4SC5.2-198-200-1500D | 200V | 120-300V | 1500W | 600-1800W | 5.2m³/h | 198m | 1.25 " | 2m | SSCO | ＜450V |
| I | S4SC5.2-255-300-2200D | 300V | 80-400V | 2200W | 1200-2800W | 5.2m³/h | 255m | 1.25 " | 2m | SSCO | ＜450V |
| J | S4SC7.5-80-110-1300D | 110V | 60-220V | 1300W | 600-1800W | 7.5m³/h | 80m | 1.25 " | 2m | SSCO | ＜250V |
| K | S4SC7.5-100-110-1500D | 110V | 60-220V | 1500W | 600-1800W | 7.5m³/h | 100m | 1.25 " | 2m | SSCO | ＜250V |
| L | S4SC7.5-80-180-1300D | 200V | 120-300V | 1300W | 600-1800W | 7.5m³/h | 80m | 1.25 " | 2m | SSCO | ＜450V |
| M | S4SC7.5-100-200-1500D | 200V | 120-300V | 1500W | 600-1800W | 7.5m³/h | 100m | 1.25 " | 2m | SSCO | ＜450V |
| N | S4SC7.5-150-300-2200D | 300V | 80-400V | 2200W | 1200-2800W | 7.5m³/h | 150m | 1.25 " | 2m | SSCO | ＜450V |
| O | S4SC11-60-110-1500D | 110V | 60-220V | 1500W | 600-1800W | 11m³/h | 60m | 2.0 " | 2m | SSCO | ＜250V |
| P | S4SC11-60-200-1500D | 200V | 120-300V | 1500W | 600-1800W | 11m³/h | 60m | 2.0 " | 2m | SSCO | ＜450V |
| Q | S4SC19-35-110-1500D | 110V | 60-220V | 1500W | 600-1800W | 19m³/h | 35m | 2.0 " | 2m | SSCO | ＜250V |
| R | S4SC19-35-200-1500D | 200V | 120-300V | 1500W | 600-1800W | 19m³/h | 35m | 2.0 " | 2m | SSCO | ＜450V |
| S | S4SC25-26-110-1500D | 110V | 60-220V | 1500W | 600-1800W | 25m³/h | 26m | 2.0 " | 2m | SSCO | ＜250V |
| T | S4SC25-26-200-1500D | 200V | 120-300V | 1500W | 600-1800W | 25m³/h | 26m | 2.0 " | 2m | SSCO | ＜450V |
Application
● Application of deep well pump to irrigation
● Village and town water supply
● Clean drinking water
● Garden watering
● Enviroment friendly
● Pumping and drip irrigation
Pump Details
Trusted Manufacturer:
We specialize in solar-powered submersible bore pumps with years of OEM/ODM experience, ensuring reliable quality and a strong global supply chain.
High Efficiency & Innovation:
Equipped with an MPPT controller and brushless DC motor, our DC screw type solar water pump maximizes energy efficiency and delivers stable water flow in deep wells or low-yield sources.
Versatile Applications:
Ideal for agriculture irrigation, livestock watering, and rural water supply projects, providing a sustainable solution for off-grid water needs.
Fully Customizable:
Options for pump size, flow rate, voltage, and branding – perfect for private label or tailored solutions to suit your specific project requirements.
● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%
● Oil filled motors for reliability and to avoid oil contamination
● Alloy mechanical seal ,longer working life and high reliability
● NSK Angular Contact Bearing
Controller Details
'- MPPT: Maximum Power Point Tracking
- DSP: Digital Signal Processing - Running Speed Control: stepless speed regulation
- Timing function: Set pump running time
- Over current protection: Motor stops automatically when stucked
- Soft starting protection:Protect the motor & bearing
- Lack of water protection: Restart Automatically upon the Water Level
- Low-voltage / Over-voltage protection: Protect the motor & controller
- Reverse voltage protection: Circuit breaking automatically when reverse connection
- Short-circuit protection: Automatically stops when Short wiring of motor
KeyWords
System Wiring Instruction
Solar Panel Recommendations
● Connect the solar panels accurately according to the product manual, as excessively high VOC voltage may cause irreversible damage to the controller.
● It is generally recommended to calculate the required solar panel power based on 1.3 to 1.5 times the rated power of the water pump.
● When connecting the solar panels, ensure that the VOC voltage of the solar panels does not exceed the maximum VOC voltage limit of the controller.
| No. | Model | Controller Voc | Solar Panel Connection | |||||||
| A | S4SC5.2-45-48-500D | SSL-4C48-110VOC |  |
|||||||
| B | S4SC5.2-67-96-750D | SSL-4C96-220VOC |  |
|||||||
| C | S4SC5.2-101-110-1100D | SSL-4C11-220VOC |  |
|||||||
| D | S4SC5.2-146-110-1300D | SSL-4C11-220VOC |  |
|||||||
| E | S4SC5.2-198-110-1500D | SSL-4C11-220VOC |  |
|||||||
| F | S4SC5.2-101-150-1100D | SSL-4C15-430VOC |  |
|||||||
| G | S4SC5.2-146-180-1300D | SSL-4C20-430VOC |  |
|||||||
| H | S4SC5.2-198-200-1500D | SSL-4C20-430VOC | |
|||||||
| I | S4SC5.2-255-300-2200D | SSL-4C30-430VOC |  |
|||||||
| J | S4SC7.5-80-110-1300D | SSL-4C11-220VOC | |
|||||||
| K | S4SC7.5-100-110-1500D | SSL-4C11-220VOC | |
|||||||
| L | S4SC7.5-80-180-1300D | SSL-4C20-430VOC | |
|||||||
| M | S4SC7.5-100-200-1500D | SSL-4C20-430VOC | |
|||||||
| N | S4SC7.5-150-300-2200D | SSL-4C30-430VOC | |
|||||||
| O | S4SC11-60-110-1500D | SSL-4C11-220VOC | |
|||||||
| P | S4SC11-60-200-1500D | SSL-4C20-430VOC | |
|||||||
| Q | S4SC19-35-110-1500D | SSL-4C11-220VOC | |
|||||||
| R | S4SC19-35-200-1500D | SSL-4C20-430VOC | |
|||||||
| S | S4SC25-26-110-1500D | SSL-4C11-220VOC | |
|||||||
| T | S4SC25-26-200-1500D | SSL-4C20-430VOC | |
|||||||

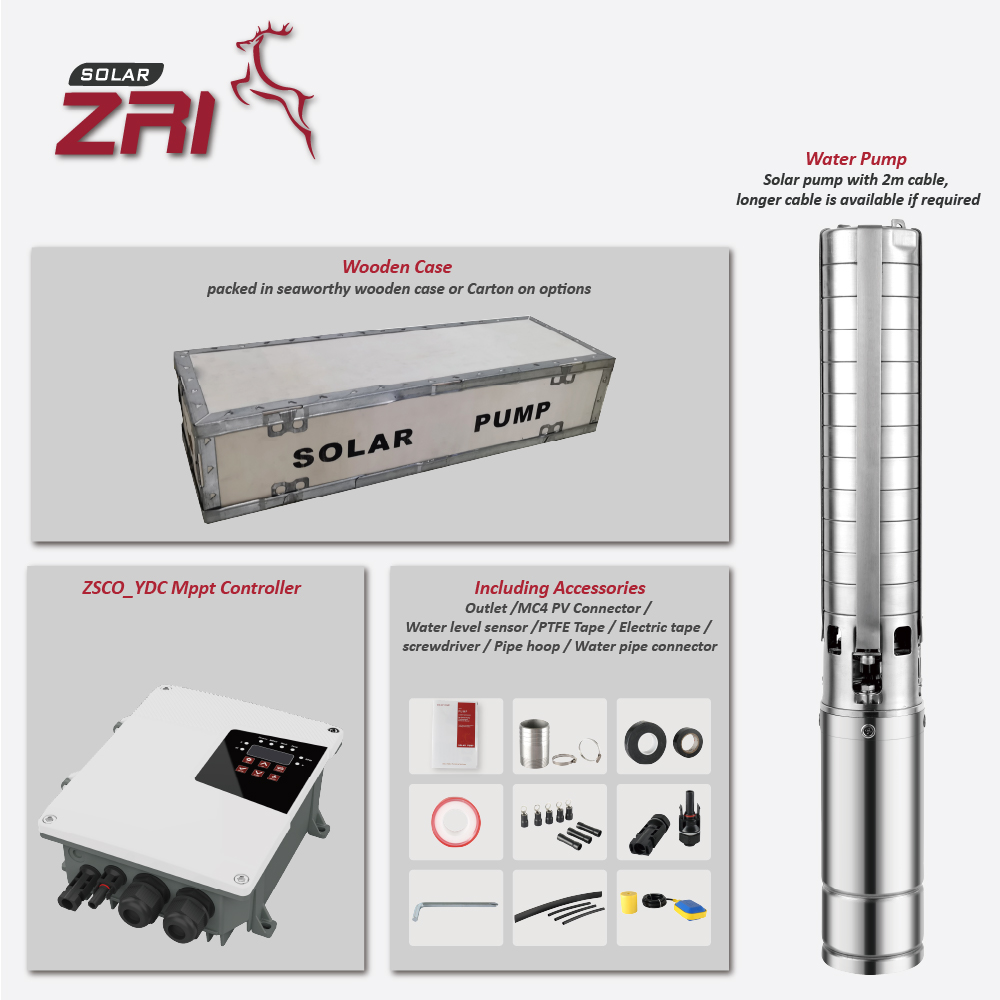

Package Include
Additional materials need to be prepared
● 1 x 4 inch DC solar centrifugal pump with one 2m cable
● 1 x Pump controler with MPPT function
● 1 x Stainless steel float swith (sensor for tank)
● 1 x Pump outlet joint connector
● 1 x Splice kit for cable join
● 1 x Splice kit for waterproof
● Suitable solar panels. Refer to the suggestions provided in the instruction book.
● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker than the original cable in the pump.
● PV cable (for connecting solar panels to the controller).
● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.
● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required.
| No. | Item | Length （CM） | Width （CM） |
Height （CM） |
Volume （m³） |
Weight （KG） |
Packaging materials | |
| A | S4SC5.2-45-48-500D | 79 | 25 | 15 | 0.030 | 14 | Wooden Case | |
| B | S4SC5.2-67-96-750D | 85 | 25 | 15 | 0.032 | 15 | Wooden Case | |
| C | S4SC5.2-101-110-1100D | 91 | 25 | 15 | 0.034 | 16 | Wooden Case | |
| D | S4SC5.2-146-110-1300D | 101 | 25 | 15 | 0.038 | 20 | Wooden Case | |
| E | S4SC5.2-198-110-1500D | 109 | 25 | 15 | 0.041 | 22 | Wooden Case | |
| F | S4SC5.2-101-150-1100D | 91 | 25 | 15 | 0.034 | 16 | Wooden Case | |
| G | S4SC5.2-146-180-1300D | 101 | 25 | 15 | 0.038 | 20 | Wooden Case | |
| H | S4SC5.2-198-200-1500D | 109 | 25 | 15 | 0.041 | 22 | Wooden Case | |
| I | S4SC5.2-255-300-2200D | 121 | 25 | 15 | 0.045 | 25 | Wooden Case | |
| J | S4SC7.5-80-110-1300D | 88 | 25 | 15 | 0.033 | 16 | Wooden Case | |
| K | S4SC7.5-100-110-1500D | 93 | 25 | 15 | 0.035 | 16 | Wooden Case | |
| L | S4SC7.5-80-180-1300D | 88 | 25 | 15 | 0.033 | 20 | Wooden Case | |
| M | S4SC7.5-100-200-1500D | 93 | 25 | 15 | 0.035 | 22 | Wooden Case | |
| N | S4SC7.5-150-300-2200D | 102 | 25 | 15 | 0.038 | 25 | Wooden Case | |
| O | S4SC11-60-110-1500D | 84 | 25 | 15 | 0.032 | 21 | Wooden Case | |
| P | S4SC11-60-200-1500D | 84 | 25 | 15 | 0.032 | 21 | Wooden Case | |
| Q | S4SC19-35-110-1500D | 82 | 25 | 15 | 0.031 | 21 | Wooden Case | |
| R | S4SC19-35-200-1500D | 82 | 25 | 15 | 0.031 | 21 | Wooden Case | |
| S | S4SC25-26-110-1500D | 82 | 25 | 15 | 0.031 | 21 | Wooden Case | |
| T | S4SC25-26-200-1500D | 82 | 25 | 15 | 0.031 | 21 | Wooden Case | |
