8SC-PV500 Solar Pumping System Solar-Powered Submersible Borehole Pump for Agricultural Irrigation

  • Categories Solar Pump Inverter
  • Brand ZRI
  • Model 8SC-PV500
  • Pump Type Impeller Type Solar Submersible Pump
  • Outlet 5 inch / 6 inch
  • Pump Diameter 8 inch / 175 mm
  • Application Domestic water supply, small area irrigation，drinking water
  • Certificate CE, ISO9001, GS, RoHS
  • Warranty 2 years
  • Package type Wooden Case
  • Motor 220V/380V AC Motor
  • Controller Solar Pump Inverter
  • Controller Protection Class IP 65
  • Customized Support OEM Accepted
  • MOQ 5 Sets
Get price now
Product Details
Packaging Information
Installation Guide

画板 6-100

The 8-inch Solar Powered Submersible Borehole Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar bore pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.

Equipped with an MPPT controller, this solar dc submersible water pump ensures maximum energy efficiency and stable operation. Its design allows it to maintain consistent water flow even in deep wells or low-yield water sources, reducing maintenance needs.

This durable and versatile Solar pump is ideal for agriculture irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the brushless dc solar water pump provides a sustainable and long-lasting water pumping solution.




 Model Motor Power Rated Flow Rated Head The best use the flow head >>> Product Technical Specification
Three phase L/min 0 833 1000 1166 1283 1500 Solar Pump Inverter Model Rated power
Output (KW)		 DC Input Voltage
Range(V)		 Rated Input Current (A) Rated Output Current (A)
380-415V- 50Hz KW HP m³/h m m³/h 0 50 60 70 77 90
A 8SP77-13-1-5.5 5.5 7.5 77 13 Head（m） 20 16 15 14 13 10 ZFPV500_4T7.5 5.5 230-800 20.5 17
B 8SP77-27-2-7.5 7.5 10 77 27 40 31 30 28 27 21 ZFPV500_4T11 7.5 230-800 26 25
C 8SP77-40-3-11 11 15 77 40 59 47 44 42 40 31 ZFPV500_4T15 11 230-800 35 32
D 8SP77-53-4-15 15 20 77 53 79 63 59 56 53 42 ZFPV500_4T18.5 15 230-800 38.5 37
E 8SP77-67-5-18.5 18.5 25 77 67 99 78 74 70 67 52 ZFPV500_4T22 18.5 230-800 46.5 45
F 8SP77-80-6-22 22 30 77 80 119 94 89 84 80 63 ZFPV500_4T26 22 230-800 62 60
G 8SP77-93-7-26 26 35 77 93 139 110 104 98 93 73 ZFPV500_4T30 26 230-800 62 60
H 8SP77-107-8-30 30 40 77 107 159 125 119 112 107 84 ZFPV500_4T37 30 230-800 76 75
I 8SP77-133-10-37 37 50 77 133 198 157 148 140 133 105 ZFPV500_4T45 37 230-800 92 91
J 8SP77-160-12-45 45 60 77 160 238 188 178 168 160 126 ZFPV500_4T55 45 230-800 113 112
K 8SP77-200-15-55 55 75 77 200 297 235 222 210 200 157 ZFPV500_4T63 55 230-800 157 150
L 8SP77-227-17-63 63 85 77 227 337 266 252 238 227 178 ZFPV500_4T75 63 230-800 157 150
M 8SP77-267-20-75 75 100 77 267 397 313 297 280 267 210 ZFPV500_4T92 75 230-800 180 176





Picture Model Motor Power Rated Flow Rated Head The best use the flow head >>> Product Technical Specification
Three phase L/min 0 1000 1333 1583 1666 1833 Solar Pump Inverter Model Rated power
Output (KW)		 DC Input Voltage
Range(V)		 Rated Input Current (A) Rated Output Current (A)
380-415V/ 50Hz KW HP m³/h m m³/h 0 60 80 95 100 110
N 8SP95-12-1-5.5 5.5 7.5 95 12 Head（m） 21 16 14 12 11 9 ZFPV500_4T7.5 5.5 230-800 20.5 17
O 8SP95-24-2-9.2 9.2 12.5 95 24 41 31 28 24 22 18 ZFPV500_4T13 9.2 230-800 35 32
P 8SP95-36-3-13 13 17.5 95 36 61 47 41 36 33 28 ZFPV500_4T18.5 13 230-800 38.5 37
Q 8SP95-48-4-18.5 18.5 25 95 48 82 62 55 48 45 37 ZFPV500_4T22 18.5 230-800 46.5 45
R 8SP95-60-5-22 22 30 95 60 102 78 69 60 56 46 ZFPV500_4T26 22 230-800 62 60
S 8SP95-72-6-26 26 35 95 72 123 94 83 72 67 55 ZFPV500_4T37 26 230-800 62 60
T 8SP95-96-8-37 37 50 95 96 163 124 110 96 89 73 ZFPV500_4T45 37 230-800 92 91
U 8SP95-120-10-45 45 60 95 120 204 155 137 120 112 92 ZFPV500_4T55 45 230-800 113 112
V 8SP95-132-11-55 55 75 95 132 225 172 152 132 123 101 ZFPV500_4T55 55 230-800 157 150
W 8SP95-144-12-55 55 75 95 144 246 187 165 144 135 111 ZFPV500_4T63 55 230-800 157 150
X 8SP95-168-14-63 63 85 95 168 285 218 193 168 157 129 ZFPV500_4T75 63 230-800 157 150
Y 8SP95-193-16-75 75 100 95 193 326 249 220 193 179 147 ZFPV500_4T93 75 230-800 180 176
Z 8SP95-240-20-93 93 125 95 240 408 312 276 240 224 184 ZFPV500_4T110 93 230-800 214 210

Application

● Application of deep well pump to irrigation
● Village and town water supply
● Clean drinking water

● Garden watering
● Enviroment friendly
● Pumping and drip irrigation

Pump Details


Trusted Manufacturer:
We specialize in solar-powered submersible bore pumps with years of OEM/ODM experience, ensuring reliable quality and a strong global supply chain.

High Efficiency & Innovation:
Equipped with an MPPT controller and brushless DC motor, our DC screw type solar water pump maximizes energy efficiency and delivers stable water flow in deep wells or low-yield sources.

Versatile Applications:
Ideal for agriculture irrigation, livestock watering, and rural water supply projects, providing a sustainable solution for off-grid water needs.

Fully Customizable:
Options for pump size, flow rate, voltage, and branding – perfect for private label or tailored solutions to suit your specific project requirements.



12

1122S3PCb-DC-Solar-Submersible-Pump-12

● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%
● Oil filled motors for reliability and to avoid oil contamination
● Alloy mechanical seal ,longer working life and high reliability
● NSK Angular Contact Bearing

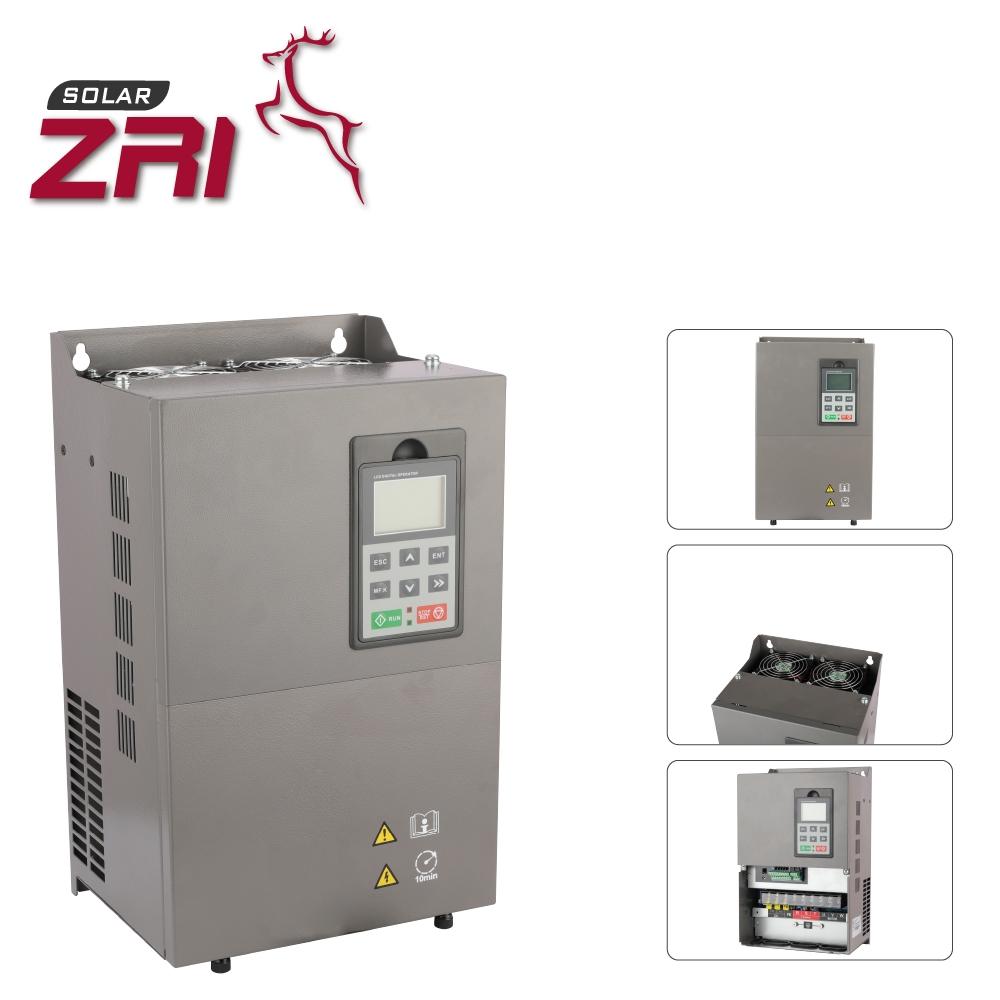

Controller Details


222

'- MPPT: Maximum Power Point Tracking
- DSP: Digital Signal Processing - Running Speed Control: stepless speed regulation
- Timing function: Set pump running time
- Over current protection: Motor stops automatically when stucked
- Soft starting protection:Protect the motor & bearing
- Lack of water protection: Restart Automatically upon the Water Level
- Low-voltage / Over-voltage protection: Protect the motor & controller
- Reverse voltage protection: Circuit breaking automatically when reverse connection
- Short-circuit protection: Automatically stops when Short wiring of motor

TEST REPORT

  • 8SP77-13-1-5.5.pdf

    8SP77-13-1-5.5.pdf

  • 8SP77-27-2-7.5.pdf

    8SP77-27-2-7.5.pdf

  • 8SP77-40-3-11.pdf

    8SP77-40-3-11.pdf

  • 8SP77-53-4-15.pdf

    8SP77-53-4-15.pdf

  • 8SP77-67-5-18.5.pdf

    8SP77-67-5-18.5.pdf

  • 8SP77-80-6-22.pdf

    8SP77-80-6-22.pdf

  • 8SP77-93-7-26.pdf

    8SP77-93-7-26.pdf

  • 8SP77-107-8-30.pdf

    8SP77-107-8-30.pdf

  • 8SP77-133-10-37.pdf

    8SP77-133-10-37.pdf

  • 8SP77-160-12-45.pdf

    8SP77-160-12-45.pdf

  • 8SP77-200-15-55.pdf

    8SP77-200-15-55.pdf

  • 8SP77-227-17-63.pdf

    8SP77-227-17-63.pdf

  • 8SP77-267-20-75.pdf

    8SP77-267-20-75.pdf

  • 8SP95-12-1-5.5.pdf

    8SP95-12-1-5.5.pdf

  • 8SP95-24-2-9.2.pdf

    8SP95-24-2-9.2.pdf

  • 8SP95-36-3-13.pdf

    8SP95-36-3-13.pdf

  • 8SP95-48-4-18.5.pdf

    8SP95-48-4-18.5.pdf

  • 8SP95-60-5-22.pdf

    8SP95-60-5-22.pdf

  • 8SP95-72-6-26.pdf

    8SP95-72-6-26.pdf

  • 8SP95-96-8-37.pdf

    8SP95-96-8-37.pdf

  • 8SP95-120-10-45.pdf

    8SP95-120-10-45.pdf

  • 8SP95-132-11-55.pdf

    8SP95-132-11-55.pdf

  • 8SP95-144-12-55.pdf

    8SP95-144-12-55.pdf

  • 8SP95-168-14-63.pdf

    8SP95-168-14-63.pdf

  • 8SP95-193-16-75.pdf

    8SP95-193-16-75.pdf

  • 8SP95-240-20-93.pdf

    8SP95-240-20-93.pdf

KeyWords

●"Solar powered water pump
●Solar bore pump price
●DC screw type solar bore pump
●Brushless dc solar water pump
●Solar dc submersible water pumps
●DC pump"

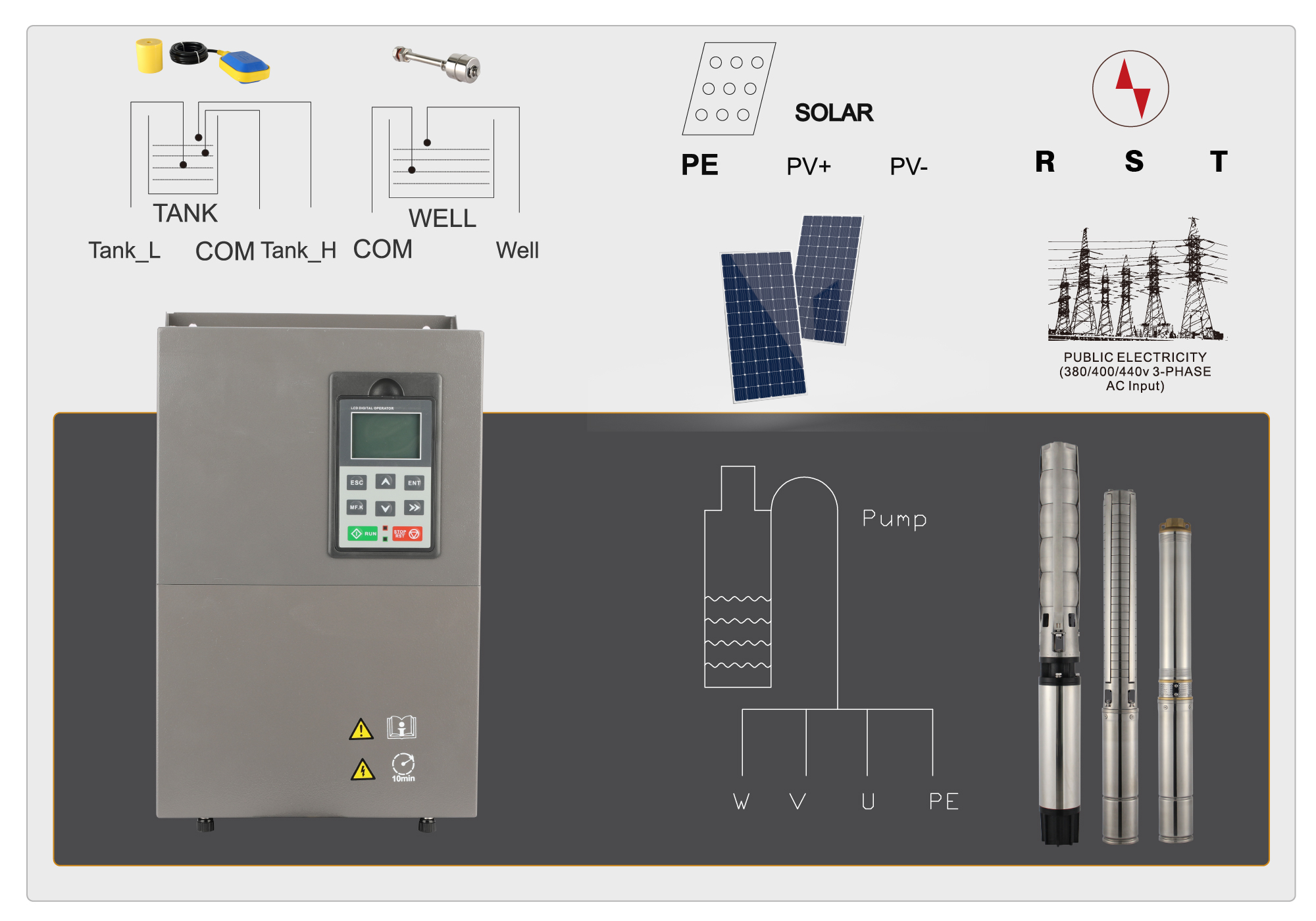

System Wiring Instruction

Powered Helical5画板 7阿里详情图-接线示意图

Solar Panel Recommendations

● Connect the solar panels accurately according to the product manual, as excessively high VOC voltage may cause irreversible damage to the controller.
● It is generally recommended to calculate the required solar panel power based on 1.3 to 1.5 times the rated power of the water pump.
● When connecting the solar panels, ensure that the VOC voltage of the solar panels does not exceed the maximum VOC voltage limit of the controller.

No. Model Controller Voc Solar Panel Connection
A 8SP77-13-1-5.5 ZFPV500_4T7.5 Total 26 PCS, 13PCS 550W all in Series,2 Line In Parallel drawing-board-1
B 8SP77-27-2-7.5 ZFPV500_4T9.2 Total 26 PCS, 13PCS 550W all in Series,2 Line In Parallel drawing-board-1
C 8SP77-40-3-11 ZFPV500_4T13 Total 30 PCS, 15PCS 550W all in Series,2 Line In Parallel drawing-board-1
D 8SP77-53-4-15 ZFPV500_4T18.5 Total 39 PCS, 13PCS 550W all in Series,3 Line In Parallel drawing-board-1
E 8SP77-67-5-18.5 ZFPV500_4T22 Total 52 PCS, 13PCS 550W all in Series,4 Line In Parallel drawing-board-1
F 8SP77-80-6-22 ZFPV500_4T26 Total 56 PCS, 14PCS 550W all in Series,4 Line In Parallel drawing-board-1
G 8SP77-93-7-26 ZFPV500_4T30 Total 78 PCS, 13PCS 550W all in Series,6 Line In Parallel drawing-board-1
H 8SP77-107-8-30 ZFPV500_4T37 Total 78 PCS, 13PCS 550W all in Series,6 Line In Parallel drawing-board-1
I 8SP77-133-10-37 ZFPV500_4T45 Total 98 PCS, 14PCS 550W all in Series,7 Line In Parallel drawing-board-1
J 8SP77-160-12-45 ZFPV500_4T55 Total 112 PCS, 14PCS 550W all in Series,8 Line In Parallel drawing-board-1
K 8SP77-200-15-55 ZFPV500_4T75 Total 135 PCS, 15PCS 550W all in Series,9 Line In Parallel drawing-board-1
L 8SP77-227-17-63 ZFPV500_4T75 Total 154 PCS, 14PCS 550W all in Series,11 Line In Parallel drawing-board-1
M 8SP77-267-20-75 ZFPV500_4T90 Total 180 PCS, 15PCS 550W all in Series,12 Line In Parallel drawing-board-1
N 8SP95-12-1-5.5 ZFPV500_4T7.5 Total 26 PCS, 13PCS 550W all in Series,2 Line In Parallel drawing-board-1
O 8SP95-24-2-9.2 ZFPV500_4T13 Total 30 PCS, 15PCS 550W all in Series,2 Line In Parallel drawing-board-1
P 8SP95-36-3-13 ZFPV500_4T18.5 Total 39 PCS, 13PCS 550W all in Series,3 Line In Parallel drawing-board-1
Q 8SP95-48-4-18.5 ZFPV500_4T22 Total 52 PCS, 13PCS 550W all in Series,4 Line In Parallel drawing-board-1
R 8SP95-60-5-22 ZFPV500_4T26 Total 56 PCS, 14PCS 550W all in Series,4 Line In Parallel drawing-board-1
S 8SP95-72-6-26 ZFPV500_4T30 Total 78 PCS, 13PCS 550W all in Series,6 Line In Parallel drawing-board-1
T 8SP95-96-8-37 ZFPV500_4T45 Total 98 PCS, 14PCS 550W all in Series,7 Line In Parallel drawing-board-1
U 8SP95-120-10-45 ZFPV500_4T55 Total 112 PCS, 14PCS 550W all in Series,8 Line In Parallel drawing-board-1
V 8SP95-132-11-55 ZFPV500_4T75 Total 135 PCS, 15PCS 550W all in Series,9 Line In Parallel drawing-board-1
W 8SP95-144-12-55 ZFPV500_4T75 Total 154 PCS, 14PCS 550W all in Series,11 Line In Parallel drawing-board-1
X 8SP95-168-14-63 ZFPV500_4T75 Total 154 PCS, 14PCS 550W all in Series,11 Line In Parallel drawing-board-1
Y 8SP95-193-16-75 ZFPV500_4T90 Total 180 PCS, 15PCS 550W all in Series,12 Line In Parallel drawing-board-1
Z 8SP95-240-20-93 ZFPV500_4T90 Total 180 PCS, 15PCS 550W all in Series,12 Line In Parallel drawing-board-1

Package Include

Additional materials need to be prepared


● 1 x 3 inch DC solar screw pump with one 2m cable
● 1 x Pump outlet joint connector
● 1 x Splice kit for cable join
● 1 x Splice kit for waterproof

● Suitable solar panels. Refer to the suggestions provided in the instruction book.
● PV Power cable (for connecting solar panels to the controller).
● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.
● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required.

No. Item Water pump Packaging Controller Packaging Packaging materials
Length （CM） Width
（CM）		 Height
（CM）		 Volume
（m³）		 Weight
（KG）		 Length （CM） Width
（CM）		 Height
（CM）		 Volume
（m³）		 Weight
（KG）
A 8SP77-13-1-5.5 61  16 15 0.015  9 52 30 15 0.023  6.2 Wooden Case
B 8SP77-27-2-7.5 66  16 15 0.016  9 52 30 15 0.023  6.2 Wooden Case
C 8SP77-40-3-11 73  16 15 0.017  9.5 52 30 15 0.023  6.2 Wooden Case
D 8SP77-53-4-15 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
E 8SP77-67-5-18.5 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
F 8SP77-80-6-22 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
G 8SP77-93-7-26 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
H 8SP77-107-8-30 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
I 8SP77-133-10-37 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
J 8SP77-160-12-45 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
K 8SP77-200-15-55 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
L 8SP77-227-17-63 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
M 8SP77-267-20-75 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
N 8SP95-12-1-5.5 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
O 8SP95-24-2-9.2 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
P 8SP95-36-3-13 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
Q 8SP95-48-4-18.5 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
R 8SP95-60-5-22 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
S 8SP95-72-6-26 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
T 8SP95-96-8-37 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
U 8SP95-120-10-45 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
V 8SP95-132-11-55 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
W 8SP95-144-12-55 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
X 8SP95-168-14-63 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
Y 8SP95-193-16-75 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case
Z 8SP95-240-20-93 81  16 15 0.019  10 52 30 15 0.023  6.2 Wooden Case



Leave Your Message
