3-inch vs 4-inch Solar Deep Well Pump Selection Comparison
2026-07-03
How Buyers Can Make the Optimal Choice
Introduction
In off-grid water supply, agricultural irrigation, livestock farm water intake, and remote village domestic water supply, solar deep well pumps are core equipment that provides stable water access powered by photovoltaic energy without grid electricity.
Mainstream solar submersible deep well pumps on the market come in two standard outer diameters: 3-inch and 4-inch. They suit different well pipe inner diameters, flow-head ranges, installation costs, and maintenance cycles. Many buyers, water engineering contractors, and farm operators only compare unit prices during selection, ignoring critical factors such as well conditions, daily water demand, long-term PV system investment, and later maintenance losses. This often leads to problems including difficult installation, insufficient water output, excessive PV panel costs, and frequent breakdowns.
From the perspective of global buyers, water engineering contractors, and farm procurement managers, this article fully analyzes the hardware structure, hydraulic performance, well compatibility, full-cycle cost, and application scenarios of 3-inch and 4-inch solar deep well pumps. It establishes a standardized comparison system to balance upfront procurement expenditure and long-term water supply efficiency, avoiding project losses caused by mismatched specifications.
1. Basic Structure & Well Diameter Compatibility
The naming refers to the maximum outer diameter of the pump body, which directly determines the minimum inner diameter of the applicable well casing. This is the primary selection threshold and cannot be modified to fit incompatible wells.

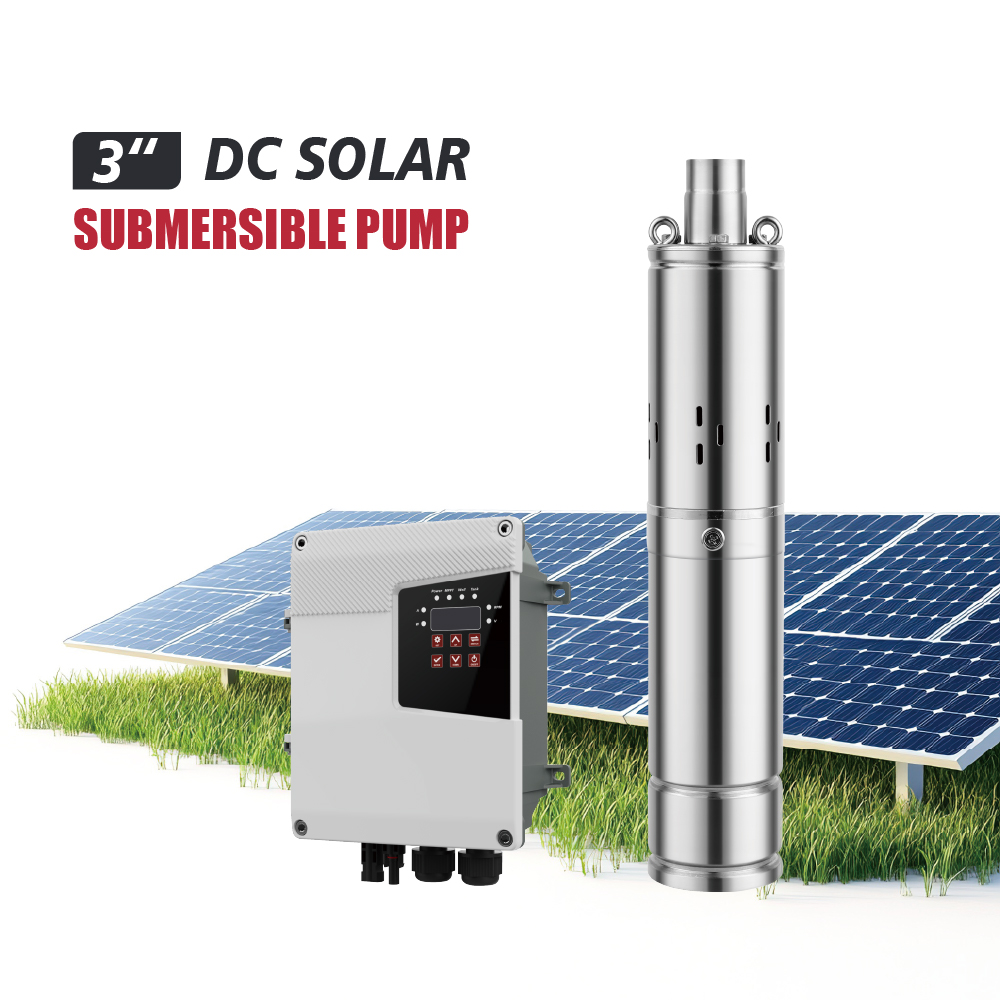

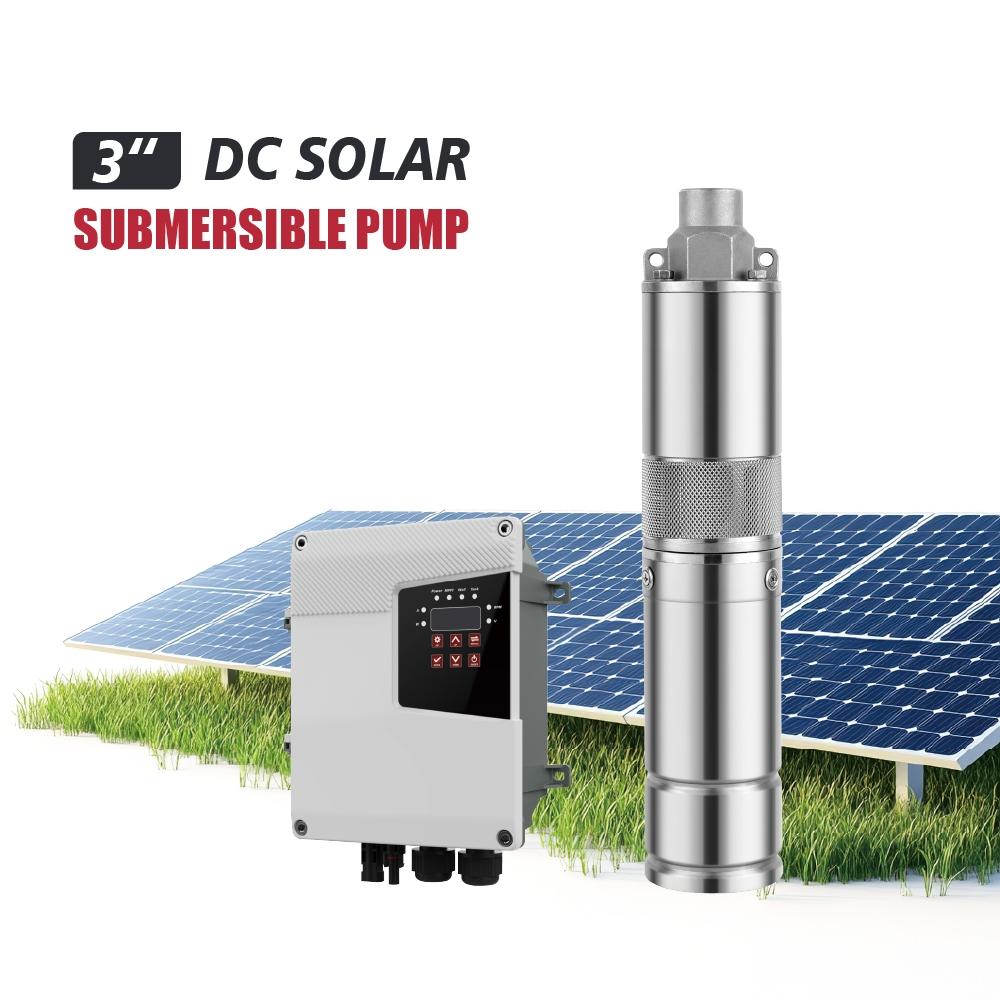

1.1 3-inch Solar Deep Well Pump – Basic Specifications
- Outer diameter: approximately 76 mm
- Requires well casing inner diameter ≥ 80 mm
- Suitable for thin-walled small-diameter wells, small household shallow/deep wells, and old narrow well retrofits
Structure features:
- Mainly small multi-stage centrifugal pumps, with plastic or stainless steel impellers
- DC brushless permanent magnet motor, voltage: 24V, 48V, 72V, power: 250W – 1.2kW
- Weight: 6–14 kg, short body length
- Installation, lifting, and retrieval can be done by one person without heavy lifting equipment
Hydraulic design favors high head, small flow, ideal for deep groundwater tables and low daily water consumption.

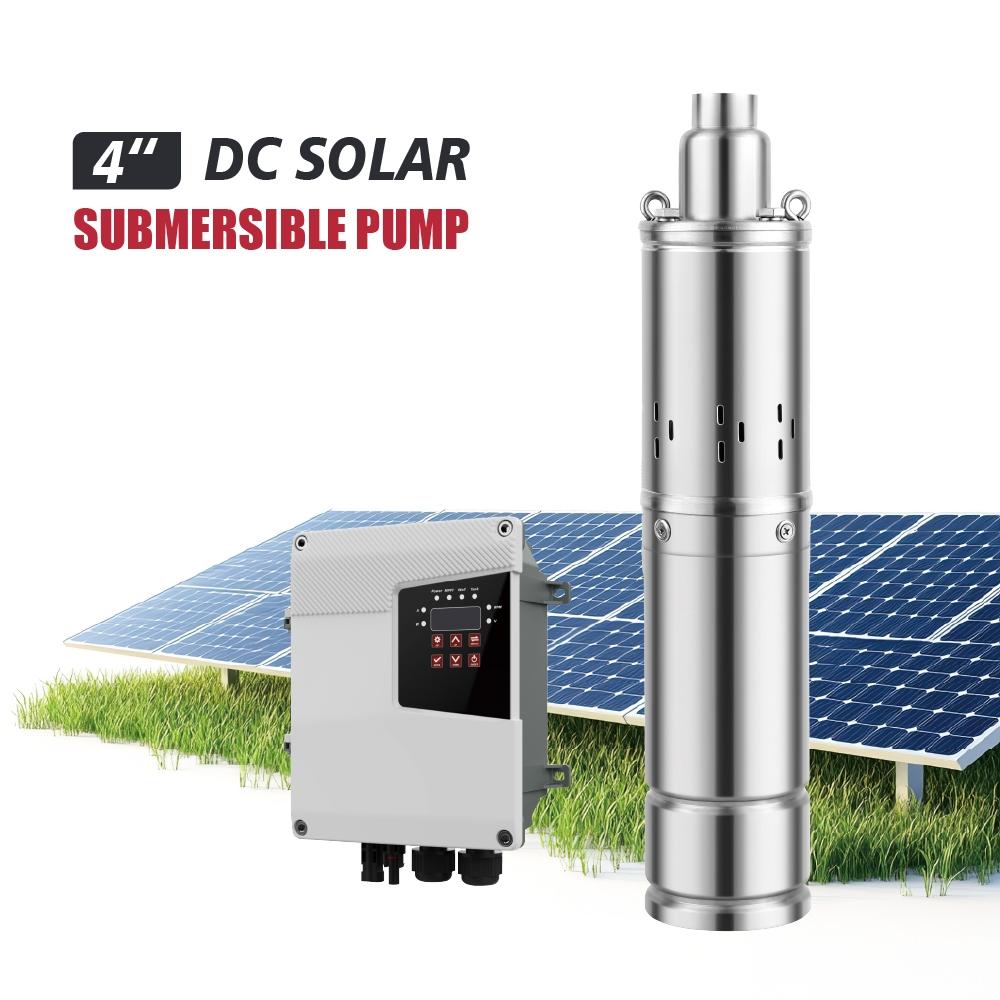

1.2 4-inch Solar Deep Well Pump – Basic Specifications
- Outer diameter: approximately 98 mm
- Requires well casing inner diameter ≥ 100 mm
- Global standard for commercial drilling and large-scale irrigation wells
Structure features:
- Motor power: 0.5kW – 5.5kW
- Supports AC-DC hybrid or pure DC photovoltaic versions
- Wider impeller chamber, supports high-flow multi-stage impellers or screw pumps
- Tolerates minor sand content in well water
- Weight: 12–28 kg; heavy-duty models require two-person lifting
- Larger pipeline diameter, higher water delivery efficiency
The widened flow path reduces water resistance. Under the same PV power, water flow is 30%–60% higher than equivalent 3-inch pumps, making it suitable for large-volume, medium-low head water supply.
Hard Matching Rules for Well Diameter
- 80–98 mm inner diameter: only 3-inch pumps can be installed; 4-inch pumps cannot fit and may damage screens or become stuck
- ≥ 100 mm inner diameter: both sizes are compatible; choose based on flow demand
- Old manual drilled wells or thin-walled PVC casings: prioritize 3-inch pumps for greater clearance and less pipe wear
2. Hydraulic Performance Comparison: Flow, Head, PV Energy Consumption
2.1 Head Performance
At the same power:
- 3-inch pumps use more stacked multi-stage impellers, with obvious high-head advantages
- A 1.2kW 3-inch solar pump can reach a maximum head of 180 meters, suitable for mountain ultra-deep wells
- A 1.2kW 4-inch pump typically reaches only about 110 meters, with significant flow decay at high heads
Recommendation:
- Static water level > 120 m: choose 3-inch
- Static water level < 100 m: choose 4-inch to maximize flow
2.2 Flow Output
Taking 72V 1kW standard models as an example:
- 3-inch solar pump: 3–8 m³/h, suitable for households, small orchards, and small livestock farms
- 4-inch solar pump: 8–20 m³/h, supports drip irrigation for hundreds of mu of farmland, large-scale breeding farms, and centralized village water supply
Large irrigation projects using 3-inch pumps require multiple parallel units, greatly increasing costs for PV panels, controllers, and pipelines.
2.3 PV System Energy Consumption Difference
- 3-inch pumps have narrow flow paths and high hydraulic resistance, leading to higher PV energy consumption per cubic meter
- 4-inch pumps have lower hydraulic loss; PV power required for the same water volume is 15%–25% lower
Example:
Daily water: 60 m³, total dynamic head 80 m
- 3-inch pump: requires ~2.8kW PV array
- 4-inch pump: only ~2.1kW PV panels needed, reducing long-term PV costs
3. Hardware, Durability & Maintenance Cost Comparison
3.1 Pump Body & Impeller Material Compatibility
Both models offer plastic and stainless steel impellers:
- 3-inch plastic impellers: lower cost but prone to jamming in sandy water; only for clean domestic water
- 3-inch 304 stainless steel impellers: wear-resistant but small flow area, easier sand buildup, requiring regular cleaning
- 4-inch stainless steel impellers: larger chamber, better sand passage; some use screw structures for sandy wells
- Thickened stainless steel housing improves heat dissipation, lower temperature rise during continuous operation
3.2 Maintenance & Lifting Costs
- 3-inch pumps: lightweight, one-person maintenance, low labor cost; but small bearings and seals are niche parts with higher unit prices
- 4-inch pumps: high market penetration, standardized parts widely available globally, lower bulk prices; only heavy models need simple lifting tools
3.3 Service Life
Under the same material and daily operating hours:
- Clean water, low sand: both last 8–12 years
- Sandy water, 8-hour daily operation: 4-inch pumps reduce wear by 40%, extending service life by 3–5 years
4. Full-Cycle Procurement Cost Comparison
4.1 Unit Factory Price
- Same-power basic stainless steel version: 3-inch pumps are 12%–20% cheaper
- Bulk orders (50+ units): 4-inch pumps benefit from standardized parts and larger bulk discounts; overall unit price difference narrows to under 5%
4.2 PV System Matching Cost
- Large-flow projects: 4-inch pumps have lower per-cubic-meter PV investment
- Household small-scale wells: 3-inch pumps use fewer PV panels, lower initial system cost
4.3 Hidden Long-Term Costs
- Consumables: 3-inch pumps have ~30% higher annual consumable cost
- Downtime loss: 4-inch pumps reduce clogging and downtime, avoiding irrigation season losses
- Expansion cost: 4-inch pumps can be upgraded with higher-power motors; 3-inch pumps are limited by well diameter and require a second pump with duplicated PV and piping
5. Scenario-Based Procurement Guide
Scenario 1: Household Off-Grid Water Supply, Old Narrow Well Retrofit
Recommended: 3-inch solar deep well pump
- Well ID: 80–98 mm
- Static water level > 100 m
- Daily water: 3–15 m³
- Suitable for 3–8 person households and small gardens
Advantages: compact, easy installation, low upfront cost, ideal for narrow wells.
Scenario 2: Medium-Sized Farms, Irrigation, Livestock Water Supply
Recommended: 4-inch solar deep well pump
- Well ID ≥ 100 mm
- Static water level: 20–100 m
- Daily water > 20 m³, year-round continuous operation
- Well water with minor sand content
Advantages: high flow, lower PV cost, strong sand resistance, low long-term maintenance cost.
Scenario 3: Mountain Ultra-Deep Wells, High-Altitude Forest Irrigation
Priority: 3-inch solar deep well pump
Static water level often exceeds 130 m; 4-inch pumps cannot reach required head. Single high-head 3-inch unit is the most cost-effective solution.
Scenario 4: Centralized Village Water Supply, Large-Scale Breeding Bases
Only 4-inch solar deep well pump recommended
Reduces the number of wells needed, minimizes system cost per cubic meter, uses universal parts for easy global after-sales.
6. Key Procurement Pitfalls to Avoid
- Measure actual well inner diameter; do not rely on nominal sizes
- Distinguish rated head from actual dynamic head; reserve 15%–20% head margin for pipeline loss
- For sand content > 50 ppm, use stainless steel impellers; 4-inch screw pumps are optimal
- For bulk projects, calculate full PV system cost, not just pump price
- For overseas projects, confirm motor voltage compatibility; AC-DC hybrid 4-inch pumps fit more markets
- For remote areas, choose 4-inch standard models for easier local part availability
Conclusion
There is no absolute “better” choice between 3-inch and 4-inch solar deep well pumps. The core selection logic is a combination of:
well diameter + daily water volume + groundwater conditions.
- 3-inch pumps: compact, narrow-well compatible, excellent high-head performance, ideal for households and ultra-deep low-flow wells
- 4-inch pumps: high flow, low hydraulic loss, sand-resistant, standardized parts, preferred for large-scale irrigation and water supply projects with better full-cycle cost efficiency
Buyers and contractors must collect four key data points before ordering:
well inner diameter, static water level, daily water demand, and sand content. Only then can they accurately choose between 3-inch and 4-inch models and avoid costly mismatches.
