Built-in vs. External MPPT Controllers for Solar Water Pumps
2026-07-20
For buyers making procurement decisions on solar water pump systems, the controller is the core component of the entire system, directly affecting pumping efficiency, project reliability, and long-term operating costs. There are two main controller architectures on the market today: built-in MPPT controllers (integrated inside or immediately adjacent to the pump motor) and external controllers (mounted on the ground, separate from the pump body). Each has its own strengths and weaknesses, and the best choice depends on the project’s specific application scenario, geographical environment, and operation and maintenance capabilities. This article provides a detailed comparative analysis to help buyers make more informed decisions.
The Core Role of MPPT Controllers: Why They Are Indispensable
Before comparing the two architectures, it is critical to understand the basic function of an MPPT controller. The output power of solar photovoltaic panels changes in real time with light intensity and temperature, meaning voltage and current are not constant. Acting as an “intelligent manager,” an MPPT (Maximum Power Point Tracking) controller uses algorithms to continuously track and maintain the PV panel at its maximum power output point, boosting system power generation efficiency by 20% to 30%.
In contrast, traditional PWM controllers act as a “simple switch” and cannot fully utilize the PV panel’s power generation potential under varying conditions. In a solar water pump system, the controller is not only the core of energy conversion but also provides critical protection functions including dry-run protection, overvoltage protection, and overload protection, preventing pump motor damage from dry running or electrical faults. Therefore, controller selection directly determines whether the pump operates stably and efficiently under fluctuating sunlight conditions.
Built-in MPPT Controller: Solution Analysis
A built-in MPPT solution integrates the MPPT controller with the motor drive unit, usually hermetically installed above the pump motor or as a single assembly, lowered into the well or placed underwater with the pump.
Core Advantages
- Excellent Anti-Theft and Vandal Resistance: This is the most prominent advantage of the built-in design. In remote regions such as Africa, the Middle East, and Latin America, theft or vandalism of ground equipment is a leading cause of project failure. Placing the controller deep inside the well virtually eliminates theft risk, as thieves cannot remove the pump without heavy-duty professional lifting equipment. For international aid projects, community water supplies in remote rural areas, or unattended livestock watering points, this feature greatly improves long-term project survival.
- “Plug-and-Play” Easy Installation: Systems with built-in controllers greatly simplify on-site installation. Engineers only need to connect PV panel cables directly to the pump cables, with no complicated junction box setup or tedious programming required on the ground. This significantly reduces the risk of installation errors while saving installation time and labor costs.
- Strong Environmental Adaptability: Since the controller is sealed and submerged in well water, its electronic components are fully protected from extreme surface heat, sandstorms, strong UV radiation, or heavy rain. The well water provides natural, continuous cooling, ensuring internal electronics operate at stable, suitable temperatures and improving long-term system reliability.
Main Disadvantages
- Difficult Maintenance and Repair: This is the main drawback of built-in controllers. If the unit fails, technicians must pull the entire pump out of the well for inspection or replacement. This typically requires heavy tripods, winches, and multiple workers, especially in deep well applications, resulting in high difficulty, cost, and time consumption.
- Limited Power Rating: Due to restricted heat dissipation in the sealed chamber, built-in MPPT controllers are generally suitable for smaller pumps, typically below 3 HP. They lack sufficient power handling capacity for large-scale agricultural irrigation projects requiring high flow and high head.
External MPPT Controller: Solution Analysis

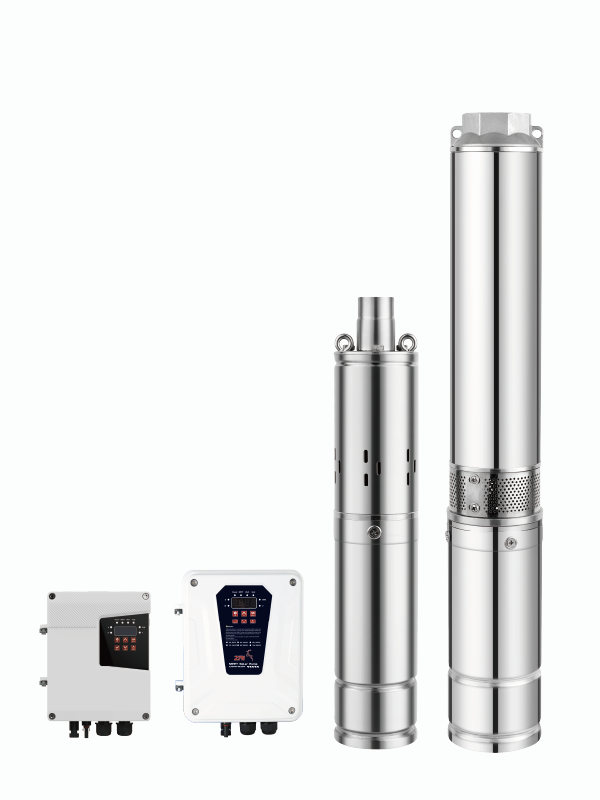

The external controller follows a traditional architecture, operating as a standalone device installed in a ground control cabinet or metal enclosure, usually near the PV array.
Core Advantages
- Easy Maintenance and Troubleshooting: This is the biggest advantage of external controllers. When the system malfunctions, maintenance staff can directly open the control cabinet on the ground and quickly diagnose issues using on-screen fault codes or multimeters. Replacing fuses, checking wiring, or swapping the entire controller module is highly convenient, eliminating the need for large lifting equipment and significantly reducing maintenance costs and downtime.
- Supports High-Power Applications: The spacious external controller enclosure accommodates large heat sinks and active cooling fans, effectively dissipating high heat from high-power operation. For this reason, all high-power solar water pump systems (5 HP and above) use external controllers, making them the only choice for large commercial farms and deep-well irrigation projects.
- Rich Functions and Intelligent Monitoring: Modern external controllers usually feature LCD screens, Bluetooth, or GSM communication modules. Operators can view real-time operating data including voltage, current, speed, and flow on-site. More importantly, they support remote monitoring and management, allowing users to check system status and adjust parameters via mobile apps or central control rooms — essential for efficient management of decentralized or large-scale projects.
Main Disadvantages
- Theft and Security Risks: This is the most critical weakness of external controllers. As high-value ground equipment, control cabinets are highly vulnerable to theft and vandalism. In areas with poor security, equipment theft can paralyze the entire project and cause investment losses. Even with protective cages and fencing, additional costs and security risks are introduced.
- Environmental Durability Challenges: External controllers are exposed to harsh surface conditions including sunlight, extreme heat, sand, rain, and lightning. This not only requires high enclosure protection ratings (such as IP65) but also demands wide-temperature components and enhanced lightning protection, increasing the risk of equipment aging and failure.
Built-in MPPT vs. External Controller: Key Indicator Comparison
To provide a clear comparison, buyers can reference the following key performance indicators:
| Comparison Dimension | Built-in MPPT Controller | External Controller |
|---|---|---|
| Installation Convenience | Excellent: plug-and-play, simple wiring, no complex configuration. | Medium: requires control cabinet installation, complex wiring and setup. |
| Maintenance Cost | High: pump lifting required for faults, labor-intensive and expensive. | Low: ground operation, easy inspection and component replacement. |
| Theft & Security | Excellent: submersible installation, nearly theft-proof, high project security. | Poor: ground equipment vulnerable to theft/vandalism, requires extra security. |
| Applicable Power Range | Low power (typically ≤ 3 HP). | High power (≥ 5 HP), no upper limit. |
| Monitoring & Intelligence | Limited, difficult to integrate advanced monitoring. | Powerful: real-time data display, remote monitoring and data management. |
| Environmental Resistance | Excellent: waterproof, dustproof, superior cooling, unaffected by surface weather. | Requires high protection rating, vulnerable to heat, sand, and lightning. |
| System Efficiency | High: deeply integrated, near-zero cable loss. | High: minor cable loss possible with longer wiring. |
Procurement Decision Recommendations: Matching Project Needs
Buyers should not evaluate technical parameters in isolation, but conduct a comprehensive assessment based on the following dimensions:
Project Location & Security Conditions
This is the primary consideration. If the project is in remote, poorly secured, or unattended areas (such as community water points in Africa or livestock stations), the built-in controller is the preferred choice. Its anti-theft advantage is irreplaceable and directly determines project viability. For sites with walls and strong security, such as commercial farms or industrial zones, the external solution is more suitable.
System Power Requirements
This largely determines the architecture. For large agricultural irrigation projects with high flow and high head (typically above 3 HP), only external controllers are feasible, as built-in units cannot handle such power levels.
Maintenance Capacity & Cost
If the project site lacks professional deep-well repair teams or has limited access for lifting equipment, prioritize external controllers for easy ground maintenance and lower long-term O&M risks. The built-in design can be considered if complex lifting operations are acceptable during failures.
System Monitoring & Management Needs
For projects requiring real-time data monitoring, remote diagnostics, or centralized management (such as large irrigation districts), external controllers with communication capabilities are essential.
Conclusion
Built-in MPPT controllers excel in extreme anti-theft security and simple installation, making them ideal for small-to-medium power, remote, low-security community water supply or livestock projects. The tradeoff is reduced maintenance convenience and limited high-power capability.
External controllers offer easy maintenance, high-power support, and strong functional scalability, making them the natural choice for large commercial farms and deep-well irrigation. The tradeoff is higher theft risk and exposure to harsh environments.
The core of the buyer’s decision lies in balancing anti-theft security and maintenance convenience, alongside matching project power requirements. There is no universally “best” solution — only the solution that best fits the actual conditions of the project.
