Factory Testing of Solar Water Pumps: Ensuring Quality and Performance Through Rigorous Evaluation

Factory testing is a critical phase in the production of Solar Water Pumps, serving as a cornerstone for ensuring product quality, reliability, and compliance with technical standards. Below is a detailed overview of the primary test categories and procedures:





1. Appearance and Structural Inspection
2. Visual Examination

- Surface Integrity: Conduct a meticulous visual inspection to identify scratches, cracks, deformations, or other imperfections on the pump’s exterior.

- Nameplate Verification: Ensure all nameplate markings are clear, accurate, and complete, including essential details such as the product model, specifications, power rating, and safety certifications.



2. Structural Stability Assessment

-Component Linkages: Check the firmness of all mechanical connections, including the motor-pump body interface, pipe fittings, and fasteners, to eliminate risks of looseness or misalignment.

- Seal Integrity: Inspect seals and gaskets at pipe interfaces, joints, and access covers to ensure no leaks or vulnerabilities that could compromise performance.



1. Electrical Performance Testing
2. Insulation Resistance Test

- Procedure: Use an insulation resistance tester to measure the resistance between the motor windings and the pump casing.

- Standards: The measured value must meet or exceed the specified threshold (e.g., ≥5 MΩ) to mitigate electrical leakage hazards and ensure operator safety.



2. Withstand Voltage Test

- Procedure: Apply a high voltage (e.g., 1.5× rated voltage) across the motor windings for a defined duration (e.g., 1 minute).

- Objective: Verify that the insulation system can withstand overvoltage conditions without breakdown, ensuring robust protection against electrical failures.



3. Electrical Parameter Calibration

- Measurements: Record the pump’s rated voltage, current, power consumption, and power factor under nominal operating conditions.

- Validation: Compare results against design specifications to confirm efficiency and compliance with energy standards.





1. Hydraulic Performance Testing
2. Flow Rate Measurement

- Method: Use a calibrated flowmeter to measure water discharge at various operating points (e.g., minimum, nominal, and maximum head).

- Criteria: Ensure the flow rate aligns with the pump’s performance curve and meets the specified range (e.g., 5–20 m³/h for agricultural models).



2. Head Pressure Test

- Procedure: Measure the pressure differential between the pump’s inlet and outlet using pressure transducers or manometers.

- Calculation: Convert pressure data to head (in meters) and validate against design parameters (e.g., 30–100 m head for deep-well applications).



3. Efficiency Evaluation

- Formula: Calculate hydraulic efficiency using the ratio of output power (water flow × head × gravity) to input electrical power.

- Standards: Ensure efficiency meets or exceeds industry benchmarks (e.g., ≥70% for high-efficiency models) and complies with regional energy efficiency regulations.

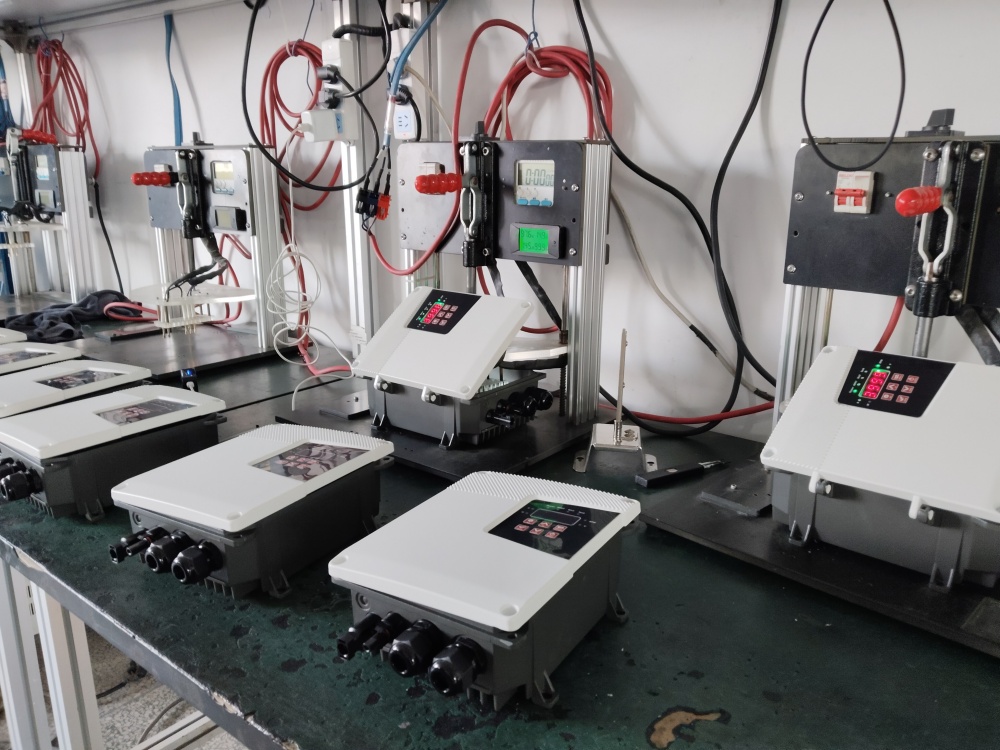

1. Control System Testing
2. Automatic Control Functionality

- Light Intensity Sensing: Test the pump’s ability to start/stop or adjust speed based on pre-set solar irradiance thresholds (e.g., activating at ≥200 W/m²).

- Water Level Control: Verify that the pump responds appropriately to water level sensors, preventing dry running or overflow in storage tanks.



2. Protection Mechanism Testing

- Overload Simulation: Induce motor overload (e.g., 120% of rated current) to check if the circuit breaker or thermal protector trips within specified time limits.

- Overheating/Undervoltage Tests: Simulate overheating (e.g., motor temperature >90°C) or low voltage (e.g., <10% of rated voltage) to ensure prompt shutdown and fault indication.





1. Environmental Adaptability Testing
2. High-Temperature Testing

- Protocol: Operate the pump in a controlled chamber at elevated temperatures (e.g., 60°C) for 24–48 hours.

- Evaluation: Monitor for performance degradation, excessive noise, or thermal runaway, ensuring stability in tropical or arid regions.



2. Low-Temperature Testing

- Protocol: Subject the pump to sub-zero temperatures (e.g., -20°C) and test start-up performance and fluid flow consistency.

- Objective: Prevent issues like frozen seals or reduced lubricant efficiency in cold climates.



3. Humidity and Corrosion Testing

- Procedure: Expose the pump to high-humidity environments (e.g., 95% RH) or salt fog (for coastal applications) to assess insulation degradation and corrosion resistance.

- Standards: Ensure electrical components maintain insulation resistance and mechanical parts show no signs of rust or corrosion after testing.





1. Reliability and Endurance Testing
2. Continuous Operation Test

- Protocol: Run the pump continuously for 500–1,000 hours under nominal load conditions.

- Monitoring: Track parameters like vibration levels (≤2.5 mm/s), temperature rise (<40K), and noise (<85 dB) to evaluate long-term durability.



2. Cycle Testing

- Procedure: Simulate daily start-stop cycles (e.g., 10 cycles/day for 30 days) to assess wear on mechanical seals, bearings, and control components.

- Objective: Ensure consistent performance and minimal degradation after repeated operational cycles.

Conclusion

Factory testing of solar water pumps is a multi-faceted process that combines visual inspection, electrical and hydraulic performance validation, control system verification, environmental stress testing, and reliability endurance trials. By adhering to these rigorous protocols, manufacturers can ensure their products meet the demands of diverse applications—from agricultural irrigation in scorching deserts to remote water supply in frigid mountain regions—while upholding the highest standards of safety, efficiency, and sustainability. This comprehensive approach not only builds customer trust but also drives innovation in solar-driven water solutions worldwide.
