How to choose the right solar pump power for my farm?

In modern agriculture, Solar Pumps have become the ideal choice for farm irrigation due to their environmentally friendly and energy-saving characteristics. However, choosing the appropriate power for a solar pump is no easy task and requires a comprehensive consideration of multiple factors such as the size of the farm, water source conditions, irrigation needs, and budget. This article will provide you with a detailed analysis on how to select the appropriate solar pump power based on the specific needs of your farm, helping you achieve efficient and sustainable agricultural irrigation.

First. Understand the basic principle of solar pumps
A solar pump is a device that uses solar panels to convert sunlight into electrical energy and then pumps water from a lower place to a higher place or transports it over a long distance. Its main components include solar panels, water pumps, inverters (if any) and control systems. The working efficiency of solar pumps is affected by various factors such as the intensity of sunlight, the quality of solar panels, and the performance of the water pumps.

Sencond. Key Steps for Selecting a Solar Pump
1. Determine the irrigation requirements
The size of the farm directly affects the scale and water consumption of the irrigation system. Generally speaking, small farms (with an area of less than 10 mu) can choose solar pumps with lower power (such as less than 1.5kW), while medium-sized farms (10 to 50 mu) require pumps ranging from 2.2kW to 5kW. For large-scale farms (over 50 mu), pumps with greater power (over 5kW) may be required.

Water requirements of crops: The water requirements of different crops vary greatly. For example, the water requirement of vegetables and flowers is usually higher than that of grain crops. If the farm grows crops that require a large amount of water, pumps with greater power should be selected to meet the irrigation needs.

Irrigation frequency: The irrigation frequency also affects the power selection of the pump. If the farm requires frequent irrigation (such as once a day or every other day), a pump with greater power and the ability to work continuously should be selected.

2. Calculate the head
Head refers to the height to which a water pump can lift water and is an important parameter when choosing a solar pump. The following factors need to be considered when calculating the head:

The vertical height from the water source to the irrigation area: This is the most intuitive factor for calculating the head. If the water source is located beneath the farm, the water needs to be pumped to a higher position, and the head will increase.

Pipe resistance: The length, diameter and material of the pipe will all affect the resistance of water flow. Long pipes or small-diameter pipes will increase resistance, thereby increasing the actual required head.

Flow requirement: Flow refers to the amount of water that needs to be conveyed within a unit of time. The greater the flow rate, the higher the required head may also be.

3. Select the appropriate type of water pump
According to the location of the water source and irrigation requirements, the following types of pumps can be selected:

Centrifugal pumps: Suitable for short-distance and high-flow irrigation scenarios, they are typically used for surface water sources.

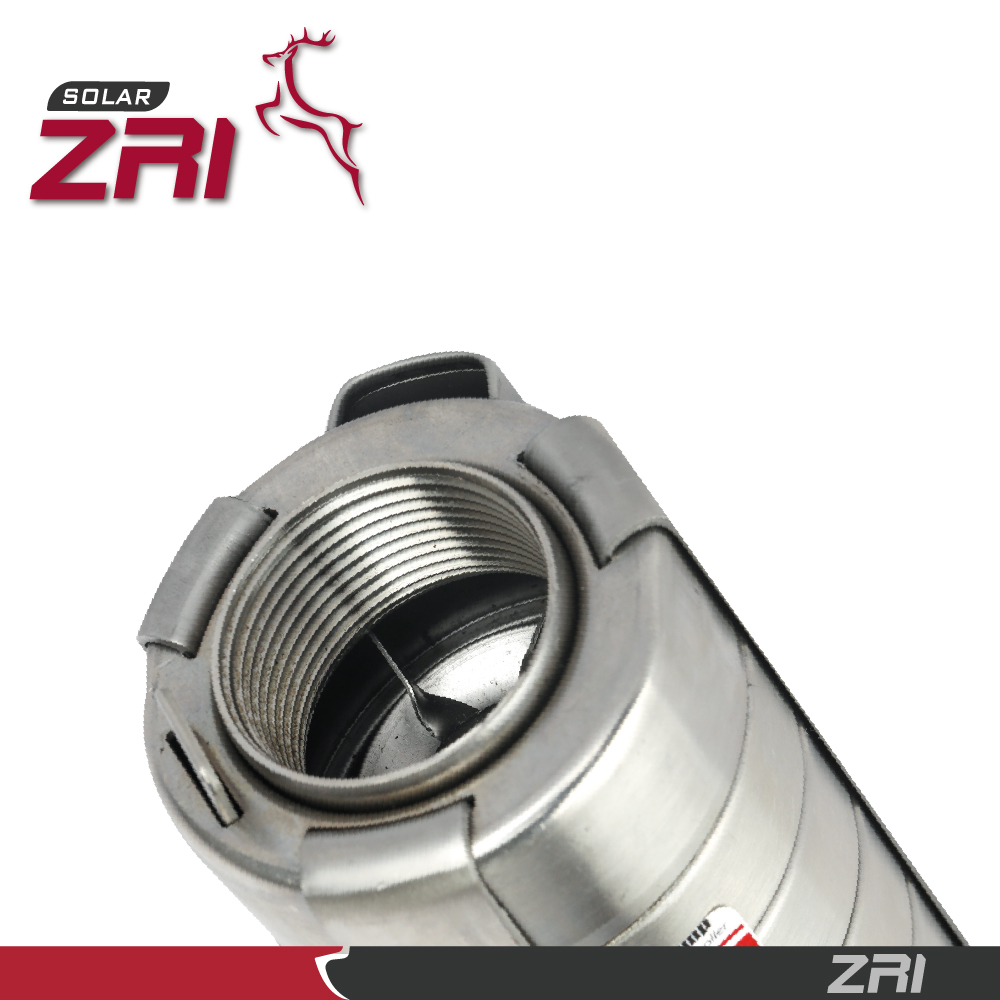

Submersible pump: It is suitable for deep Wells or areas with low groundwater levels and can pump water from deep water sources.

Dc pumps and AC pumps: DC pumps are usually suitable for low-power scenarios and are relatively affordable. Ac pumps are more suitable for high-power applications and have higher efficiency.

4. Determine the power of the solar panel
The power of solar panels directly affects the operating efficiency of the pump. Generally speaking, the power of solar panels should be 1.3 times or more of that of the water pump. For instance, if the water pump power is 750W, the power of the solar panel should be at least 975W (750W × 1.3). In addition, the local sunlight conditions also need to be taken into account. If the duration of sunlight is short or the intensity is low, it may be necessary to increase the power of the solar panels.

5. Consider whether battery energy storage is needed
If the farm needs to use the water pump at night or on cloudy days, it is recommended to be equipped with a battery energy storage system. Battery energy storage systems can store electrical energy when there is sufficient sunlight for use at night or on cloudy days. When choosing a battery, it is necessary to ensure that the battery voltage matches that of the water pump and to be equipped with a suitable charging manager.
