Leveraging Solar Water Pumps for Parks, Pools, and Drainage
2026-07-01
Operators and managers of municipal parks, resorts, community public swimming pools, and urban construction sites are increasingly turning to off-grid solar water pump technologies. Driven by rising electricity costs and carbon reduction targets, solar water pumps have become a practical solution for water circulation, landscape fountains, and temporary drainage in commercial and public facilities.
They require no grid connection, have low operating and maintenance costs, and automatically start and stop with sunlight. This article analyzes applications and selection priorities of solar water pumps in three typical commercial scenarios from a procurement and technical perspective.
Table of Contents
- Application Value of Solar Water Pumps in Commercial & Public Facilities
- Solar Fountain Pumps for Park Fountains and Landscape Water Features
- Solar Circulation Pump Solutions for Public & Commercial Swimming Pools
- Solar Drainage Pumps for Construction Foundation Pit and Temporary Water Removal
- Pump Matching and Key Parameter Comparison Across Different Scenarios
- Evaluation Criteria and Compliance Considerations for Commercial Procurement
- Frequently Asked Questions (FAQ)
- Conclusion
Application Value of Solar Water Pumps in Commercial & Public Facilities
Traditional commercial water equipment relies on grid power, resulting in substantial long-term electricity expenses. It also cannot operate in remote parks or newly developed areas without grid access.
A solar PV water pump system consists of solar panels, an MPPT controller, and a DC water pump. It runs automatically during daylight hours without an inverter, delivering higher overall energy efficiency.
For municipal and commercial properties, this means lower operating expenses (OPEX), reduced wiring and excavation costs, and improved sustainability credentials toward green building certifications such as LEED and BREEAM.

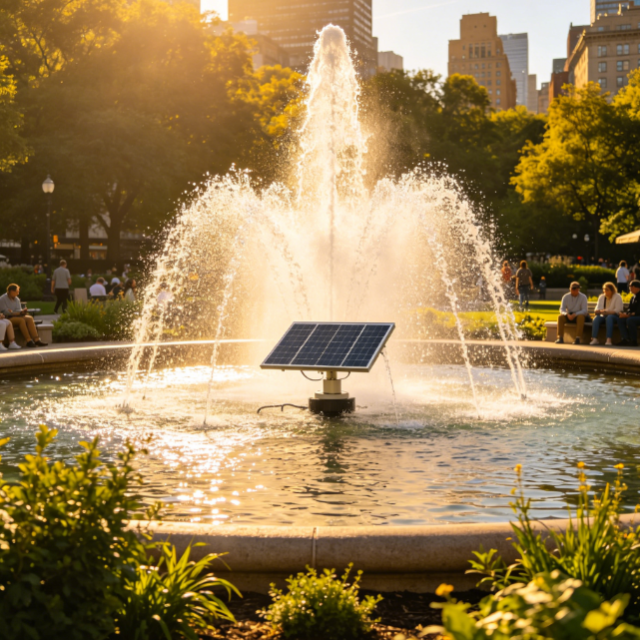

Solar Fountain Pumps for Park Fountains and Landscape Water Features
Urban park fountains, community courtyard waterfalls, and scenic landscape ponds typically operate only during the daytime, aligning perfectly with sunlight hours — making them ideal applications for solar fountain pumps and solar submersible fountain pumps.
Pump Selection
- Small and medium fountains mostly use DC brushless submersible pumps with multi-hole nozzles.
- Large-flow landscape water systems can use solar centrifugal ground pumps to drive multi-layer waterfalls or ring nozzles.
Head and Flow Rate
Decorative fountains generally require 0.5–3m head and 300–2000 LPH flow, calculated based on nozzle count and spray height.
Controller Functions
A built-in MPPT controller ensures smooth speed reduction in low morning/evening light instead of sudden shutdowns, avoiding inconsistent fountain performance.
Corrosion Resistance and Sealing
Landscape water often contains algae and trace chlorine. Pump bodies should use corrosion-resistant engineering plastic or 304 stainless steel with a protection rating of at least IP68.
The biggest advantage in these applications is eliminating the need for dedicated fountain electrical boxes and underground piping, making them especially suitable for existing park renovations or ecological protection areas with excavation restrictions.
Solar Circulation Pump Solutions for Public & Commercial Swimming Pools
Community pools, hotel resort pools, and public water parks require continuous water circulation to support sand filters or cartridge filters.
Solar pool pumps mostly use 48V+ brushless DC motors matched directly to solar arrays.
Flow Matching
Commercial pool circulation typically requires full water replacement every 6–8 hours. The required GPM or LPH is calculated accordingly for pump selection.
Corrosion-Resistant Design
Pool water contains chlorine or salt (salt-chlorine systems). Pump heads and wet-end parts should use chlorine-resistant plastic or 316 stainless steel, with seal materials compatible with disinfectants.
Hybrid Power Supply Mode
Many commercial projects adopt AC/DC hybrid solar pool pumps — powered by solar energy during the day and automatically switching to grid power on cloudy days or at night, ensuring uninterrupted 24/7 circulation and filtration.
Noise Control
Ground-mounted solar centrifugal pool pumps should be low-noise models (<55 dB) to avoid disturbing nearby leisure areas.
Note: Pure solar-powered pumps do not run at night. If local health regulations mandate 24-hour circulation, hybrid power or a backup grid-powered circulation pump is recommended.
Solar Drainage Pumps for Construction Foundation Pit and Temporary Water Removal
Foundation pit dewatering, temporary basement flooding, and rainwater collection during road construction are often short-term, temporary tasks.
Solar submersible dewatering pumps and solar submersible sewage pumps are ideal for new construction sites without grid power or green construction projects aiming to reduce diesel generator fuel consumption.
Passage Capacity
For pit water containing silt or fine particles, select solar submersible sewage pumps with semi-open or vortex impellers to prevent fibers and gravel from jamming the impeller.
Head and Discharge Distance
Total head is determined by foundation pit depth plus horizontal pipeline loss, typically ranging from 8–20m for construction drainage.
Float Control
With a liquid level float switch, the system achieves automatic start/stop — pumping when water reaches the warning level and shutting off at low levels, requiring no on-site supervision.
Limitation: During prolonged rainy periods, reduced solar power lowers discharge capacity. A diesel or grid-powered backup pump is recommended for critical flood control periods.
Pump Matching and Key Parameter Comparison Across Different Scenarios
| Application Scenario | Recommended Pump Type | Typical Motor Type | Key Considerations |
|---|---|---|---|
| Park Fountains / Landscape Waterfalls | Solar DC Brushless Submersible Pump / Small Solar Centrifugal Pump | 12V/24V BLDC | Nozzle-matched head, corrosion resistance, IP68 sealing |
| Public Pool Circulation & Filtration | Medium & High-Power Solar Pool Pump (AC/DC hybrid optional) | 48V/72V BLDC | Pool volume-matched flow, chlorine-resistant materials, MPPT controller |
| Construction Foundation Pit Drainage | Solar Submersible Sewage Pump / Solar Vortex Drainage Pump | 24V/48V BLDC | Solid-particle passage, float auto-control, anti-clog impeller |
| Large Artificial Lake Circulation & Aeration | Solar Centrifugal Ground Pump / Floating Solar Pump | 48V+ BLDC | High flow low head, floating platform installation, anti-algae clogging |
Evaluation Criteria and Compliance Considerations for Commercial Procurement
-
Solar Panel Matching The rated pump power should generally not exceed 70%–80% of the solar panel STC power, allowing margin for startup and cloudy conditions.
-
Certification Requirements Electrical safety and EMC certifications for target export markets (such as CE, IEC 60335-2-41 for pool equipment, IEC 61215 for solar panels) are basic requirements for commercial tenders.
-
MPPT Controller Features Verify dry-run protection, over/under-voltage protection, and soft start to extend motor life.
-
After-Sales & Spare Parts Commercial projects emphasize lifecycle support. Confirm availability and replacement cycles for wearing parts such as controllers, seals, and impellers.
-
System Scalability For future battery storage or panel expansion, ensure the controller supports a wide input voltage range.
Frequently Asked Questions (FAQ)
Q: Can a solar pool pump fully replace a grid-powered circulation pump?
A: Pure solar pumps only run during daylight. If regulations or water quality management require 24/7 circulation, use an AC/DC hybrid model or a small backup grid pump.
Q: How to maintain solar submersible fountain pumps in parks during winter?
A: In cold regions, remove, clean, and store pumps indoors during freezing periods to avoid cracking the pump casing and seals.
Q: Can solar drainage pumps pump muddy water?
A: Solar submersible sewage pumps with vortex impellers can handle muddy water, but filters must be cleaned regularly to avoid large hard debris.
Q: What size solar panel is required?
A: Estimate by dividing pump nominal power by 0.75 and system voltage. Final sizing depends on local peak sun hours.
Q: Do commercial projects need battery storage?
A: Fountains and drainage usually operate only during daytime and require no batteries. For extended operation at dawn/dusk, add lithium iron phosphate batteries.
Q: Do solar fountain pumps light up automatically at night?
A: Standard solar pumps have no lighting function. Independent solar landscape lights are required for night scenery.
Q: Does AC/DC hybrid solar pumping cause water hammer during switching?
A: Premium models feature soft start/stop to greatly reduce water hammer impact.
Q: Will submersible pumps fail if submerged long-term?
A: Solar submersible pumps with intact mechanical seals can run underwater long-term. Avoid dry running and clean intake filters regularly.
Q: Can one solar pump support multiple nozzles?
A: Yes, but total flow demand must not exceed the pump’s maximum capacity. Nozzle height will decrease slightly after splitting flow.
Q: What is the typical service life of solar water pumps?
A: Solar panels last 25+ years. High-quality brushless DC pumps last 5–10 years under normal water quality and without dry running.
Conclusion
From daytime fountains in municipal parks and pool water circulation in resorts to temporary foundation pit drainage on construction sites, solar water pump systems provide commercial and public facilities with a fluid-handling solution that cuts electricity costs, simplifies wiring, and supports ESG goals.
By correctly understanding scenario-specific requirements for head, flow, corrosion resistance, and power supply modes, buyers can select reliable equipment optimized for project lifecycle costs.
If you are planning equipment for park landscapes, public pool renovations, or green construction sites, communicate detailed working conditions with suppliers based on the above framework for accurate selection.
