Progressive Cavity vs. Centrifugal Pumps: High-Head Showdown
2026-07-30
In high-head fluid transfer scenarios, pump selection directly determines whether the system can operate stably at the target head, achieve economical energy consumption, and deliver predictable equipment lifespan. Progressive cavity pumps (also known as screw pumps) and centrifugal pumps (including multistage centrifugal pumps) are the two most common technical solutions in this field, yet their performance under high-head demands differs drastically. Understanding their fundamental working principles and performance boundaries is the foundation for making the right selection decision.
Fundamental Differences in Working Principles
Centrifugal Pump (Dynamic Displacement)
A centrifugal pump is a dynamic pump that relies on the high-speed rotation of an impeller. As liquid enters the pump casing, the impeller blades transfer mechanical energy to the fluid, imparting high kinetic energy. The fluid then passes through the volute casing’s diffuser section, where kinetic energy is converted into static pressure.
The head of a centrifugal pump depends on the impeller’s tip speed—larger impeller diameter and higher rotational speed produce greater head. Single-stage centrifugal pumps have limited head capacity; to achieve higher heads, multiple impellers are mounted in series on a single shaft to form a multistage centrifugal pump, which boosts pressure incrementally.
Progressive Cavity Pump (Positive Displacement)
A progressive cavity pump is a positive displacement pump. Its core components are an eccentric helical metal rotor (single screw) and an elastic stator (double-threaded bushing) that meshes with it. As the rotor performs planetary rotation inside the stator bore, continuous sealed cavities form between the rotor and stator. These cavities move uniformly from the suction port to the discharge port, “progressively” pushing the medium from the inlet to the outlet for transfer.
The head of a progressive cavity pump is determined by the number of stages—each additional stage increases output pressure proportionally. Each stage of a standard G-type single-screw pump delivers approximately 0.6–1.2 MPa, corresponding to a clean water head of 60–120 meters.
Performance in High-Head Scenarios
Under high-head requirements, the performance curves of the two pump types exhibit starkly different trends.
Centrifugal Pump Performance
The centrifugal pump’s flow-head (Q-H) curve slopes downward—flow decreases significantly as head rises. In low-flow, high-head operating conditions, centrifugal pump applications are severely limited: narrow flow passages make manufacturing difficult, and efficiency plummets.
A critical risk for centrifugal pumps operating at high head is motor overload when the actual operating head falls below 60% of the rated head, leading to overheating and potential motor burnout. This means the centrifugal pump’s operating head must precisely match its design range; deviation from the design point causes a sharp drop in efficiency and even equipment failure.
Progressive Cavity Pump Performance
As a positive displacement pump, the progressive cavity pump’s flow is directly proportional to speed and largely independent of head (pressure). Flow remains constant as long as speed is unchanged, regardless of discharge pressure fluctuations. This means the progressive cavity pump maintains stable flow output at high heads, avoiding the centrifugal pump’s “rising head, plummeting flow” behavior.
Multistage progressive cavity pumps achieve extremely high heads—field data shows vertical lift can reach 500 meters, with horizontal transfer covering several kilometers. Furthermore, progressive cavity pumps operate efficiently across their full design head range and maintain stable head output over a wide speed spectrum.
Critical Differences in Media Adaptability
High-head applications often involve complex media conditions—high-viscosity liquids, solid-laden slurries, or gas-liquid-solid three-phase mixtures. The gap in adaptability between the two pump types is even more pronounced in this dimension.
Centrifugal Pump Media Sensitivity
Centrifugal pumps are extremely sensitive to fluid viscosity. As viscosity increases, flow, head, suction lift, and efficiency all decline significantly. Studies confirm that when handling high-concentration solid slurries, head and efficiency decrease with rising solids content at rated speed.
High-speed impellers (typically 3,600 rpm) struggle with abrasive media, accelerating impeller wear. Additionally, centrifugal pumps require a high net positive suction head required (NPSHr), making them prone to cavitation under poor suction conditions.
Progressive Cavity Pump Media Versatility
Progressive cavity pumps offer far superior media adaptability. They handle high-viscosity media up to 20,000–200,000 mPa·s, as well as concentrated media with hard suspended particles or fibers.
With rotor speeds much lower than centrifugal pumps (typically 400–960 rpm), the medium experiences minimal shear force, with no turbulence or agitation. Most notably, progressive cavity pump head and efficiency increase with solids concentration—the opposite of centrifugal pumps.
Progressive cavity pumps also boast excellent self-priming capability, with suction lifts of 3–8.5 meters and no need for a foot valve. They perform well with gas-entrained media.
Multistage Centrifugal Pump: The Mainstay of Centrifugal Technology for High Heads
It should be noted that centrifugal pump technology is not ineffective in high-head applications. Multistage centrifugal pumps achieve high total head by mounting multiple impellers in series on a single shaft, with each stage adding incremental pressure. They are the standard solution for mine dewatering, municipal water supply, power plant boiler feedwater, and fire protection systems. Engineering cases show single-stage heads up to 150 meters and total heads up to 600 meters.
However, multistage centrifugal pumps have non-negligible limitations in high-head applications. Their complex structure with series-mounted impellers demands extreme design and manufacturing precision, raising maintenance technical barriers and costs. Wear and efficiency loss are exacerbated with solid-laden or high-viscosity media. The Q-H curve retains the centrifugal pump’s inherent characteristic—efficiency drops sharply when operating away from the design point.

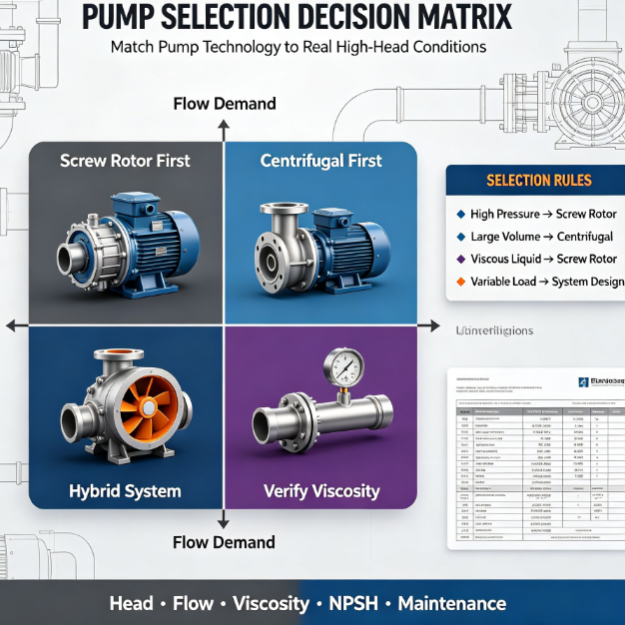

Selection Framework for High-Head Applications
Based on the above analysis, the following core dimensions guide selection decisions in high-head scenarios:
1. Media Characteristics (Primary Differentiator)
- Clean, low-viscosity liquids with high flow: Multistage centrifugal pumps are the economical, high-efficiency choice.
- High viscosity (>1,000 mPa·s), solid/fiber-laden, or gas-entrained media: Progressive cavity pumps offer irreplaceable advantages. Their rising head/efficiency with solids concentration makes them superior for high-concentration slurries.
2. Flow-Head Combination
- High-flow, high-head: Multistage centrifugal pumps are a mature, cost-effective technical route.
- Low-flow, high-head: Progressive cavity pumps deliver higher operating efficiency and stability. Centrifugal pumps are limited by narrow passages and low efficiency at low flows.
3. Operating Stability
- Fluctuating head or variable operating conditions: Progressive cavity pumps’ constant-flow characteristic provides superior stability. Centrifugal pumps suffer sharp efficiency drops and overload risks when deviating from design points.
4. Maintenance & Lifespan
- Progressive cavity pumps: Low operating speeds (400–960 rpm) reduce wear and extend lifespan. Main wear parts (rotor/stator) are easy to replace.
- Multistage centrifugal pumps: High-speed operation accelerates bearing and seal wear; multistage design increases repair complexity.
5. Suction Conditions
- Poor suction (negative pressure, self-priming needs): Progressive cavity pumps’ 3–8.5 m self-priming capability offers greater installation flexibility. Centrifugal pumps typically require positive suction or pre-priming, with stricter installation requirements.
Typical Application Scenario Comparison
The following scenarios help buyers intuitively grasp the applicability boundaries:
- Long-distance clean water pipelines (high flow, high head): Multistage centrifugal pumps are preferred—mature technology, low energy consumption per unit flow.
- Crude oil transfer (high viscosity, gas/sand entrained): Progressive cavity pumps are industry standard, reliably handling multiphase media.
- Mine dewatering (solid-laden mine water): Select based on particle concentration—multistage centrifugal pumps for low sand content; progressive cavity pumps for high-concentration or abrasive slurries.
- Wastewater & sludge transfer (high solids, high viscosity): Progressive cavity pumps excel, handling up to 40% solids content.
- High-rise water supply (clean water, variable flow): Multistage centrifugal pumps with VFD control are standard.
- Chemical high-viscosity material transfer: Progressive cavity pumps are widely used for viscosity insensitivity and low shear.
Conclusion
The choice between progressive cavity pumps and centrifugal pumps in high-head applications ultimately depends on two core requirements: flow-head characteristics and media adaptability.
- Centrifugal pumps (including multistage) offer efficiency and cost advantages in high-flow, clean media, stable operating condition high-head applications.
- Progressive cavity pumps perform better in low-to-medium flow, high-viscosity/solid-laden media, and stable flow output high-head scenarios.
Each technology has irreplaceable value ranges. The core of selection lies in accurately assessing the medium’s physicochemical properties, defining flow and head design parameters, and accounting for actual system operating conditions. Only by fully understanding operational requirements can you make the optimal decision balancing performance, efficiency, and long-term operating costs.
