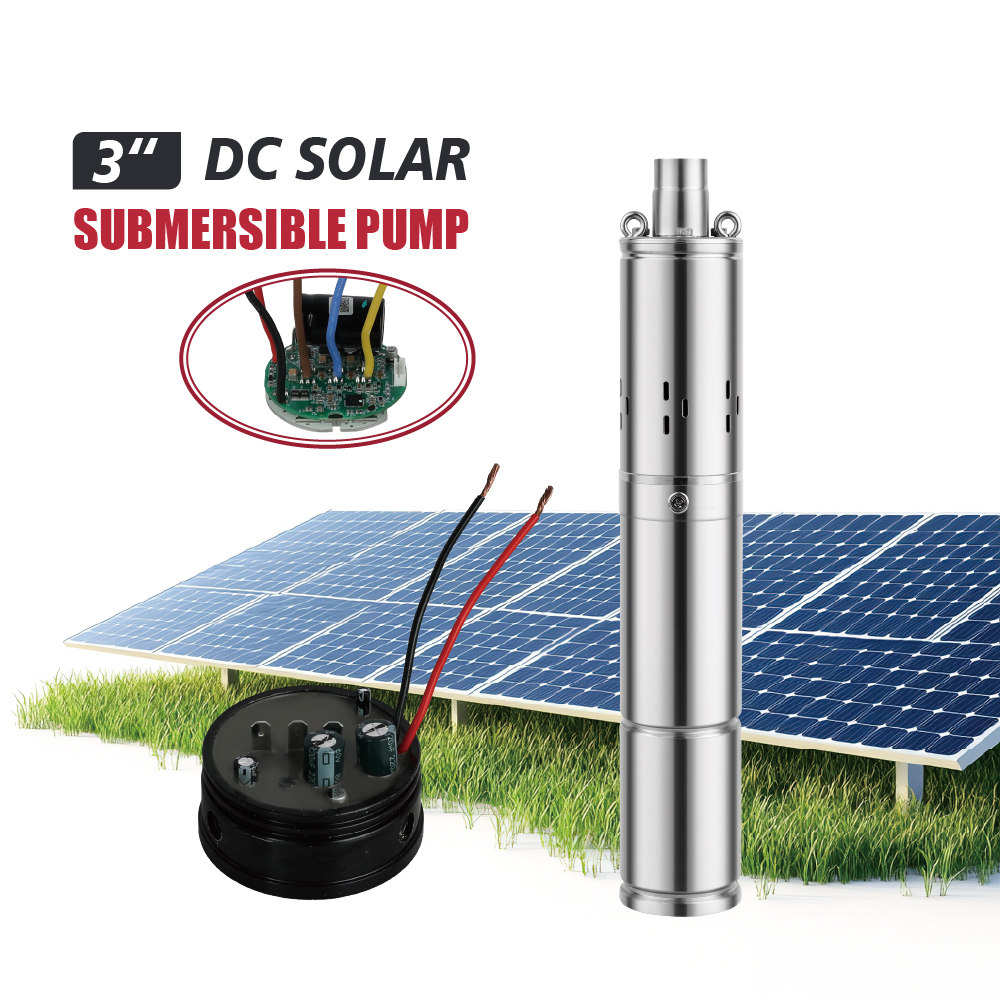

S3PC Installation Precautions: Safety Operating Procedures for 3-Inch Submersible Well Pumps

S3PC Installation Precautions: Safety Operating Procedures for 3-Inch Submersible Well Pumps

The safety operating procedures for the S3PC 3-inch submersible well pump represent core essentials often overlooked by end-users and cross-border buyers. Many have encountered pitfalls during actual installation—whether due to improper wiring causing motor burnout, inadequate waterproof sealing leading to leaks, or missing grounding measures creating safety hazards.

Whether you're a cross-border buyer, wholesaler, installation technician, or B2B client, this guide will clarify the correct installation procedures for the S3PC 3-inch submersible well pump. It helps buyers mitigate after-sales risks while ensuring end-users operate the pump safely and efficiently, extending its service life.

Today, we'll thoroughly cover the safety operation essentials for S3PC installation—from pre-installation preparation and standardized installation procedures to post-installation commissioning and critical details buyers must monitor. Every point is grounded in real-world industry experience, with no empty promises.

What pre-installation preparations can mitigate safety hazards for the S3PC 3-inch submersible well pump?

Many assume installing a submersible well pump simply involves lowering it into the well and connecting wires. This is incorrect. Neglecting pre-installation preparations significantly increases the likelihood of safety issues, operational failures, and higher maintenance costs later on.

Those of us in the solar pump industry know that the primary task before installing an S3PC 3-inch submersible well pump is to inspect the pump body and accessories. Key points include checking the motor seal for integrity, examining the cable for damage, ensuring the impeller rotates freely, and verifying that the well diameter is compatible with the 3-inch pump body.

I encountered a case at a fruit and vegetable farm in Shandong. During an S3PC installation, they failed to inspect the cable integrity. Minor damage to the outer sheath went unnoticed. After lowering the pump into the well, well water seeped into the motor. It burned out within a week of operation. Replacing the motor not only disrupted irrigation but also incurred significant additional costs.

End-users often ask me which parameters require verification before installation. The core checks are voltage, head, and well depth. The S3PC has a fixed voltage compatibility range, and the well depth must match the pump's head requirements. Otherwise, the pump will operate beyond its rated power, shortening its service life.

Additionally, specialized lifting tools must be prepared. Never lift the pump body directly by its cables to prevent cable damage under stress. Simultaneously, clear debris from the well to avoid impeller entanglement, which could disrupt normal operation. These seemingly simple preparations can mitigate 80% of installation risks.

What are the safety protocols for motor waterproofing and wiring during S3PC installation?

As an underwater operating device, the S3PC 3-inch submersible well pump requires meticulous attention to waterproofing and wiring during installation—core safety procedures that are also prone to errors. Improper handling directly impacts pump lifespan and operational safety.

For waterproofing:
- Secure cable joints and the motor's top seal. Use specialized waterproof connectors, wrap with waterproof tape, and cover with protective sleeves to eliminate leaks. The motor top seal cover must be securely tightened to prevent well water ingress that could damage internal components.

During wiring, strictly distinguish positive and negative terminals according to the manual. After wiring, ensure proper insulation and adequate grounding measures—submersible pumps must be reliably grounded to prevent electrical leakage during operation, which could cause accidents.

During a Zhejiang submersible pump inspection, two batches were deemed non-compliant due to inadequate grounding—including counterfeit versions of the S3PC model. If these counterfeits leaked electricity after installation, the consequences would be catastrophic. This serves as a stark reminder: always verify reliable grounding during installation.

Cross-border buyers often ask: Do different regional voltage standards require special wiring adjustments? The answer is no. Simply purchase an S3PC model compliant with local voltage standards and strictly follow the manual during wiring to ensure safety. The key is proper insulation and grounding.

Another crucial point: lower the pump into the well slowly to avoid colliding with the well wall. Control the pump's depth carefully—the impeller center should be at least 0.5 meters from the well bottom and no more than 3 meters from the water surface. This ensures adequate water intake while preventing the pump from sinking into silt.

What are the critical steps for commissioning and acceptance after installing the S3PC?

Many assume installation concludes once the pump is lowered into the well and wired. This is incorrect. Post-installation commissioning and acceptance serve as the final safeguard for ensuring the S3PC operates safely and reliably. These steps must not be omitted or treated superficially.

Before commissioning, run the pump dry on the ground for 3-5 minutes (do not exceed this duration). Focus on verifying the motor's rotation direction, checking for abnormal noises, and monitoring cable temperature. Only after confirming no issues should the pump be slowly lowered to the designated depth.

After lowering, start the pump. During commissioning, monitor the discharge volume and water pressure for stability, and listen for normal motor operation sounds. Simultaneously, check for loose cables or water seepage at joints. After running for 10-15 minutes, shut down and inspect the motor temperature to ensure no overheating occurs.

A friend managing farm irrigation once installed an S3PC without conducting ground idle testing. Upon lowering it into the well and starting it, he found extremely low water output. After shutting down and inspecting, he discovered the motor was rotating in reverse. Only after reconfiguring the wiring did normal operation resume, causing significant irrigation delays.

Field maintenance personnel often ask me: What causes unstable water output during commissioning? Most likely, it's due to improper pump depth in the well or debris blocking the inlet. Adjusting the pump depth or clearing debris typically restores stability.

During acceptance, maintain detailed commissioning records, focusing on parameters like flow rate, water pressure, and motor temperature. Simultaneously inspect all interface seals and grounding connections. Only after confirming all metrics meet specifications should the installation process be considered complete.

What installation details should cross-border buyers prioritize when sourcing S3PC pumps?

For cross-border buyers and wholesalers, installation details of the S3PC 3-inch submersible well pump directly impact end-user experience and after-sales costs—key factors in enhancing product competitiveness. These details demand strict oversight:

First, ensure the supplied S3PC complies with local safety and energy efficiency standards, such as EU CE or relevant US certifications. Provide comprehensive installation manuals with clear step-by-step instructions, safety precautions, and parameter specifications to facilitate end-user setup.

Second, supply dedicated installation accessories like waterproof connectors, lifting tools, and grounding components. This prevents end-users from using non-compliant substitutes due to missing parts, which can cause improper installation, malfunctions, and after-sales complaints.

I know a friend in cross-border procurement who, when supplying S3PC units, cut costs by omitting dedicated waterproof connectors. End users substituted standard connectors, resulting in inadequate waterproofing, widespread leakage failures, skyrocketing after-sales rates, and damaged brand reputation.

Additionally, suppliers can provide simple installation instructional videos to help end-users quickly master installation techniques. These videos should also highlight critical installation precautions, such as waterproofing, grounding, and commissioning steps. This approach effectively reduces after-sales rates and boosts repurchase intent.

FAQ

1. How should I troubleshoot water leakage after installing the S3PC 3-inch submersible well pump?

Prioritize inspecting the cable connector and motor seal areas. Check if the waterproof connector is loose, if the waterproof tape is properly wrapped, and if the sealing cap is securely tightened. If the seals appear intact, examine the pump body's internal seals for damage and promptly replace any damaged components.

2. For cross-border shipping of S3PC submersible well pumps, should installation accessories be packaged separately?

Yes, they should be packaged separately. Especially for fragile components like waterproof connectors and cables, use shock-absorbing packaging to prevent damage from impacts during transit. Additionally, seal the installation manual and commissioning guide separately for easy access by end-users.

3. After installing the S3PC, what key points should be noted for routine maintenance to extend its lifespan?

Regularly inspect cable integrity and waterproofing of connectors. Clean debris from the well monthly to prevent inlet blockages. Quarterly check motor seals and grounding. Immediately shut down and troubleshoot if abnormal noises or overheating occur during operation to prevent escalating failures.

Meta Description

S3PC Installation Guidelines: Safety protocols for 3-inch submersible well pumps are essential for ensuring secure operation and extending service life. This article details pre-installation preparations, waterproof wiring during installation, post-installation commissioning essentials, and procurement considerations. Tailored to meet the core needs of cross-border buyers and end-users, it helps mitigate installation hazards and after-sales risks. For procurement inquiries or further operational details, direct consultation is available.

Keywords

S3PC 3-inch submersible well pump safety operating procedures, cross-border procurement of S3PC submersible well pumps, S3PC Installation Motor Waterproofing Standards, 3-Inch Submersible Well Pump Installation and Commissioning Techniques

Whether it's installing the S3PC 3-inch submersible well pump or sourcing products for cross-border procurement, the core principles remain “safety compliance and tailored solutions.” As a widely used submersible well pump model, strictly adhering to safety protocols and meticulously addressing every detail effectively prevents malfunctions, allowing the pump to deliver its efficient water supply advantages. We hope this practical guide assists every reader who has reached this point. May every user operate the S3PC safely and efficiently, and may every purchaser precisely match end-user requirements to reduce after-sales costs. May the S3PC 3-inch submersible well pump safety operating standards serve as a reliable guide for both usage and supply chain management.
