Why Are Screw Pumps Particularly Suited for Pumping Well Water Containing Sediment?

Why Are Screw Pumps Particularly Suited for Pumping Well Water Containing Sediment?

If you're seeking reliable pumps for irrigation projects in African farmlands, water supply for remote villages in the Middle East, or aquaculture pond pumping in Southeast Asia, then handling well water with sediment is undoubtedly one of your most challenging core issues. Traditional centrifugal or jet pumps often have a short lifespan when confronted with silt—impellers wear out rapidly, seals fail prematurely, and frequent repairs and replacements not only increase costs but can also stall critical livelihood projects. Today, we delve into an industry-proven solution engineered for harsh water conditions: the solar screw pump (also known as a helical pump or progressive cavity pump). This article will thoroughly explain its operating principles, the secrets behind its wear-resistant design, and its application advantages in real-world projects, empowering you to make smarter, more long-term equipment selection decisions.

I. Core Principle: How Does a Screw Pump “Gently” Convey Silt-laden Water?

To understand the superiority of screw pumps, first examine their fundamental difference from centrifugal pumps when handling silt. Imagine a centrifugal pump as a high-speed kitchen blender. Its impeller spins rapidly, “throwing” water outward while imparting significant kinetic energy. The problem lies in the sand particles within the water acquiring the same high velocity. These particles act like countless tiny bullets, continuously impacting and chipping away at the metal impeller and pump casing, leading to rapid wear.

Screw pumps operate entirely differently. At their core is a metal rotor rotating smoothly within a stator rubber sleeve, forming a series of continuous, sealed cavities. As the rotor turns, these cavities move steadily and uniformly from the inlet to the outlet. Like a silent train car, they “enclose” and “push” the water flow—along with its suspended sediment—outward. This process generates minimal turbulence and internal impact.

The key lies here: sediment particles are transported as a cohesive mass through lateral displacement, rather than being violently flung by high-speed centrifugal force. This drastically reduces wear on the pump's internal components. A vivid analogy: centrifugal pumps “kick” sediment along, while screw pumps “carry” it.

Industry Case Reference: In a large-scale agricultural irrigation project in Ethiopia, the high-efficiency centrifugal pumps initially used required replacement of severely worn impellers and wear rings every three months on average when pumping turbid water from an Omo River tributary. After switching to a solar-powered screw pump system of equivalent power rating, the pump operated continuously for 18 months under identical silt conditions before its first preventive maintenance—merely replacing the stator rubber sleeve while the rotor body remained intact. This reduced project operating costs by over 60%.

Common User Question: Does this pump deliver significantly lower flow and head than centrifugal pumps? This is a common misconception. Screw pumps are positive displacement pumps. Their flow rate is proportional to rotational speed, while head depends on the number of cavities (i.e., length). By matching appropriate motor speeds and pump body lengths, they can achieve a wide performance range—from tens of liters to hundreds of cubic meters per minute, with heads exceeding 100 meters—sufficient for most deep well and surface water extraction needs.

II. The Secret to Wear Resistance: Dual Assurance Through Materials and Structure

Having understood its gentle operating principle, let's dissect its robust wear-resistant design. The screw pump's wear resistance stems from the perfect integration of “soft overcoming hard” material science and precision mechanical structure.

1. Stator: The Key Lies in “Elastic Envelopment”
The stator typically consists of a robust metal casing lined with highly elastic, wear-resistant rubber (such as nitrile rubber NBR, hydrogenated nitrile rubber HNBR, or higher-grade fluorinated rubber). When water containing silt flows through, the rubber inner wall undergoes slight elastic deformation. This not only accommodates sand particles but also creates an excellent seal, preventing sand from entering the minute gap between the rotor and stator and causing abrasion. This design makes the stator a wear part, but its replacement cost is far lower than replacing the entire centrifugal pump's impeller, casing, and mechanical seal.

2. Rotor: The “Steel Core” with Surface Hardening
The rotor is typically a high-strength steel shaft with a specially hardened surface (e.g., chrome plating, nitriding, or tungsten carbide coating). This hard surface significantly resists minor abrasion from silt. More importantly, during operation, a thin water film forms between the rotor and rubber stator. This lubricating film further reduces direct contact between solid particles and the metal surface.

Common User Question: Does the rubber stator age and crack easily, especially in high-temperature or chemically contaminated water? This question hits the nail on the head. Indeed, rubber selection is critical. Professional screw pump manufacturers recommend stator materials based on water quality reports (pH, oil content, minerals, etc.) and ambient temperature. For instance, in high-temperature geothermal wells or areas with intense sunlight exposure, EPDM rubber with superior heat resistance is selected. If water contains trace amounts of diesel or grease, NBR rubber is more suitable. Providing detailed water quality information during procurement is the first step to ensuring long-term reliable pump operation.

III. A Perfect Match for Solar Systems: Stable, Efficient, Maintenance-Free

When screw pumps meet solar power, they form an ideal pairing for handling sandy water sources in remote areas. This combination addresses multiple pain points faced by traditional diesel or grid-powered pumps in harsh water conditions.

1. Natural Advantage Through Speed Matching
Solar panels output direct current (DC) that drives DC motors or, via inverters, variable-frequency motors, enabling seamless stepless speed regulation. As a positive displacement pump, the screw pump exhibits a strict linear relationship between flow rate and rotational speed. This means the pump can operate smoothly at lower speeds during low-light periods like dawn or dusk, maintaining continuous water delivery with reduced flow. This avoids the “pump stall” or dry-running damage that centrifugal pumps may experience under low voltage. This “output proportional to sunlight” characteristic significantly enhances the overall energy utilization efficiency of the solar system.

2. Simplified System, Reduced Failure Points

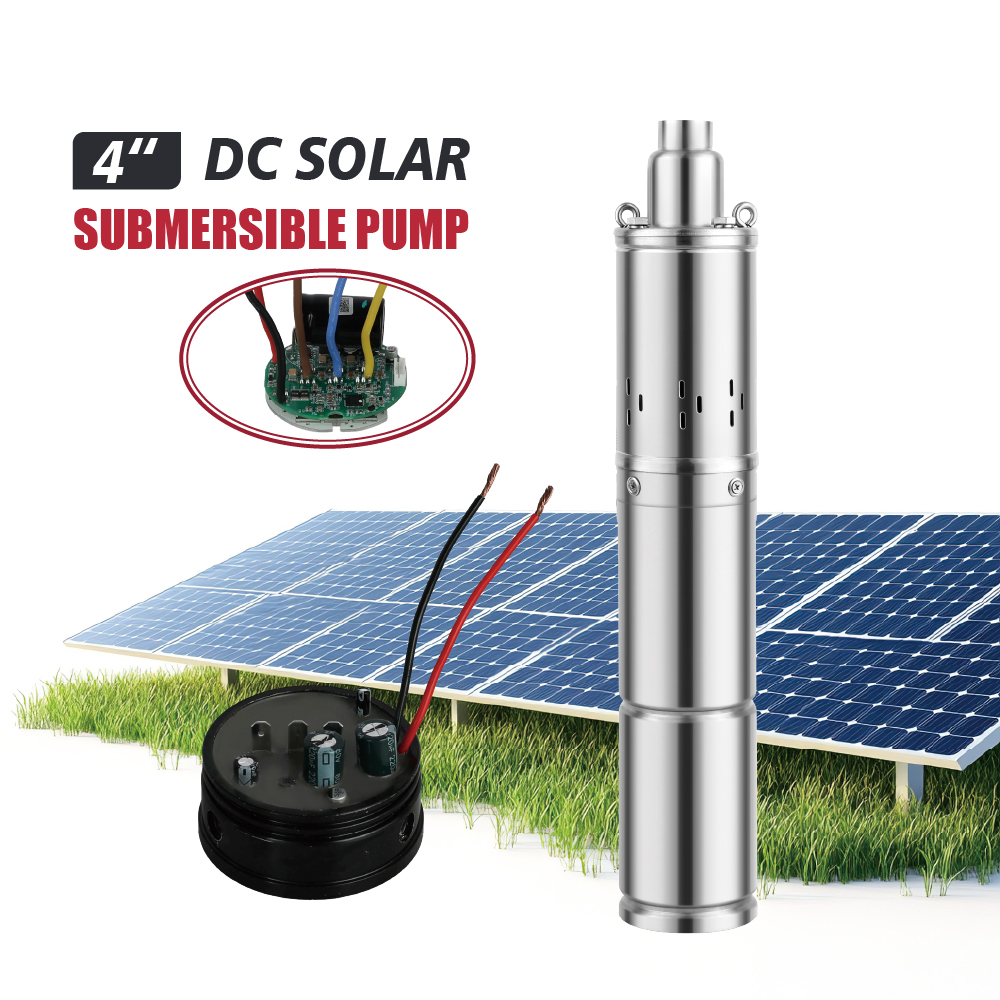

Direct-drive screw pump systems optimized for solar power can eliminate complex, bulky energy storage batteries and large inverters (depending on system design). The motor is directly connected to the pump head, creating an extremely compact structure. Fewer electrical components mean lower failure rates and simpler maintenance—critical for remote projects lacking professional technicians.

Industry Application Case:
In a village water supply project near Lake Turkana, Kenya, the water source was shallow groundwater with high silt content. The project implemented a “PV Direct-Drive Screw Pump System” to pump water to an elevated reservoir on a mountaintop. The system has operated without failure for over three years. Villagers report that water flow remains uninterrupted (though reduced) even during cloudy weather. Compared to the old diesel pump that operated only a few hours daily and required frequent repairs, reliability and daily convenience have seen revolutionary improvement. This case has become a model for local NGOs promoting sustainable water solutions.

IV. Selection and Application Essentials: How to Maximize Screw Pump Performance?

Understanding screw pumps' advantages is essential, but proper application and model selection are critical for success. The following practical considerations must be addressed during procurement and deployment.

1.  Precise Water Quality and Operating Condition Analysis
Before model selection, gather detailed source water information: sediment content (g/L), approximate sand particle size range, water temperature, pH level, and presence of oil/gas. These data directly determine the selection of stator rubber material, rotor surface treatment process, and recommended pump speed range. For extremely high sand content (e.g., Yellow River water), a more wear-resistant rubber compound and reduced operating speed may be required.

2. The “Slow and Steady Wins the Race” Philosophy
For sand-laden water, a core principle for screw pump operation is: whenever flow requirements are met, prioritize the lowest possible rotational speed. Lower speeds reduce relative motion between rotor and stator, causing wear rates to decrease exponentially and significantly extending pump lifespan. This allows system designers to select pump models with slightly higher displacement but lower speed requirements, operating at reduced speeds via solar controllers. This trade-off—slightly higher initial hardware costs for extremely low long-term maintenance and exceptionally long service life—proves highly cost-effective overall.

3. Focus on System Compatibility and Protection
Ensure the total power and voltage range of solar panels match the pump motor's requirements. Equip the system with an intelligent controller featuring dry-run protection, overload protection, and low-speed soft-start functionality. While screw pumps are wear-resistant, they absolutely must not run dry for extended periods. Otherwise, the rubber stator will rapidly burn out due to friction-induced overheating.

Common User Question: If sand settles below the pump in the well, could it bury the pump or clog the suction inlet? This is a practical concern. For deep well applications, proper pump placement and sediment trap/filter design are critical. Typically, position the pump suction inlet at least 1-2 meters above the well bottom and install a simple, easy-to-clean primary filter or sediment trap as pre-treatment. For surface water extraction with exceptionally high sediment content, consider installing a simple sedimentation tank upstream of the pump.

FAQ (Frequently Asked Questions)

Q1: What is the maximum sand concentration a screw pump can handle?
There is no absolute upper limit, but an optimal range exists for both economic efficiency and pump lifespan. Typically, optimized wear-resistant screw pumps perform best with water containing less than 5% sand by weight. While they can still operate under extremely high sand content, stator wear accelerates, shortening replacement cycles. The key is to calculate the total lifecycle cost based on specific sand content and project budget.

Q2: Are screw pumps less efficient than centrifugal pumps?
When pumping pure water, high-efficiency centrifugal pumps may indeed achieve higher peak efficiency than screw pumps. However, in the specific operating condition of pumping sandy water, the situation reverses. Centrifugal pump efficiency declines sharply with wear, whereas screw pumps exhibit a very flat efficiency curve, maintaining nearly constant efficiency during initial wear stages. Over the entire operating cycle, screw pumps typically deliver significantly higher average operational efficiency and lifetime benefits than centrifugal pumps.

Q3: Is maintenance complex? What spare parts are required?
Maintenance is relatively straightforward. The most common task involves periodically replacing the stator rubber sleeve. This process typically requires only removing a few bolts, pulling out the old stator, and pressing in the new one—operations that can be performed by technicians with minimal training. Therefore, the primary spare part is the stator sleeve, with 1-2 units recommended for stock based on water quality conditions. The rotor and mechanical seal have extended lifespans and are not typically routine spare parts.

Conclusion
When tackling the challenges of complex water conditions rich in silt, gravel, and other contaminants, selecting a reliable pump is not merely purchasing a product—it is investing in the long-term stability of your entire water supply or irrigation project. With its unique operating principle, exceptional wear-resistant design, and inherent compatibility with solar systems, the screw pump proves ideal for such demanding conditions. It delivers water resources smoothly and continuously from inaccessible environments through extended trouble-free operation, lower overall maintenance costs, and higher system reliability. This provides robust technical support for agricultural development, community living, and ecological conservation in remote areas. The next time you face the challenge of pumping sandy water sources, gaining a deeper understanding of solar screw pumps may be the key step toward finding the optimal solution.
